STAYS lens (for use with all Luxo magnifiers) 4-Diopter, 6-Diopter, 10-Diopter
STAYS lens (for use with all Luxo magnifiers) 4-Diopter, 6-Diopter, 10-Diopter
SKU:SPD025980
SPD025980, SPD025979, SPD026119

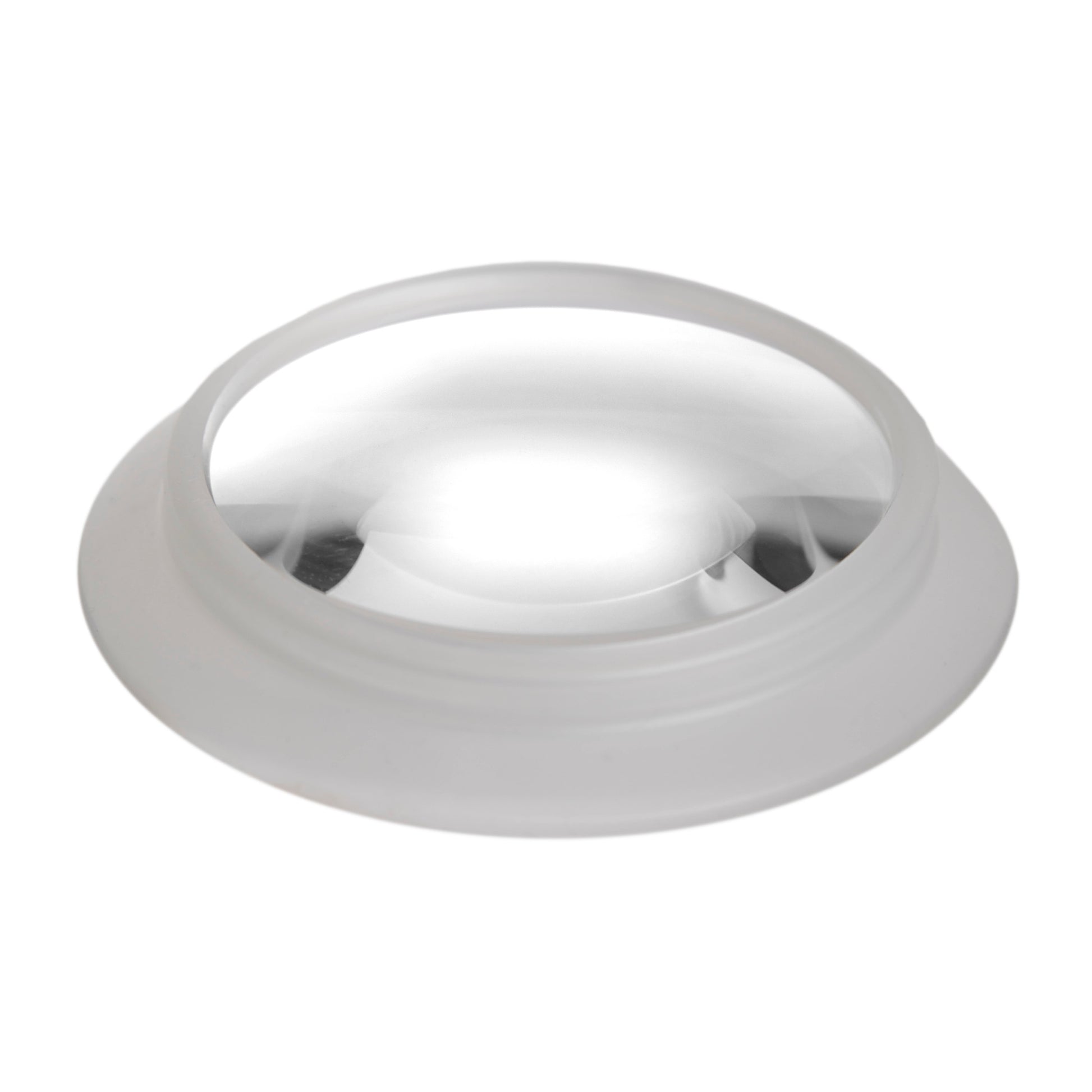

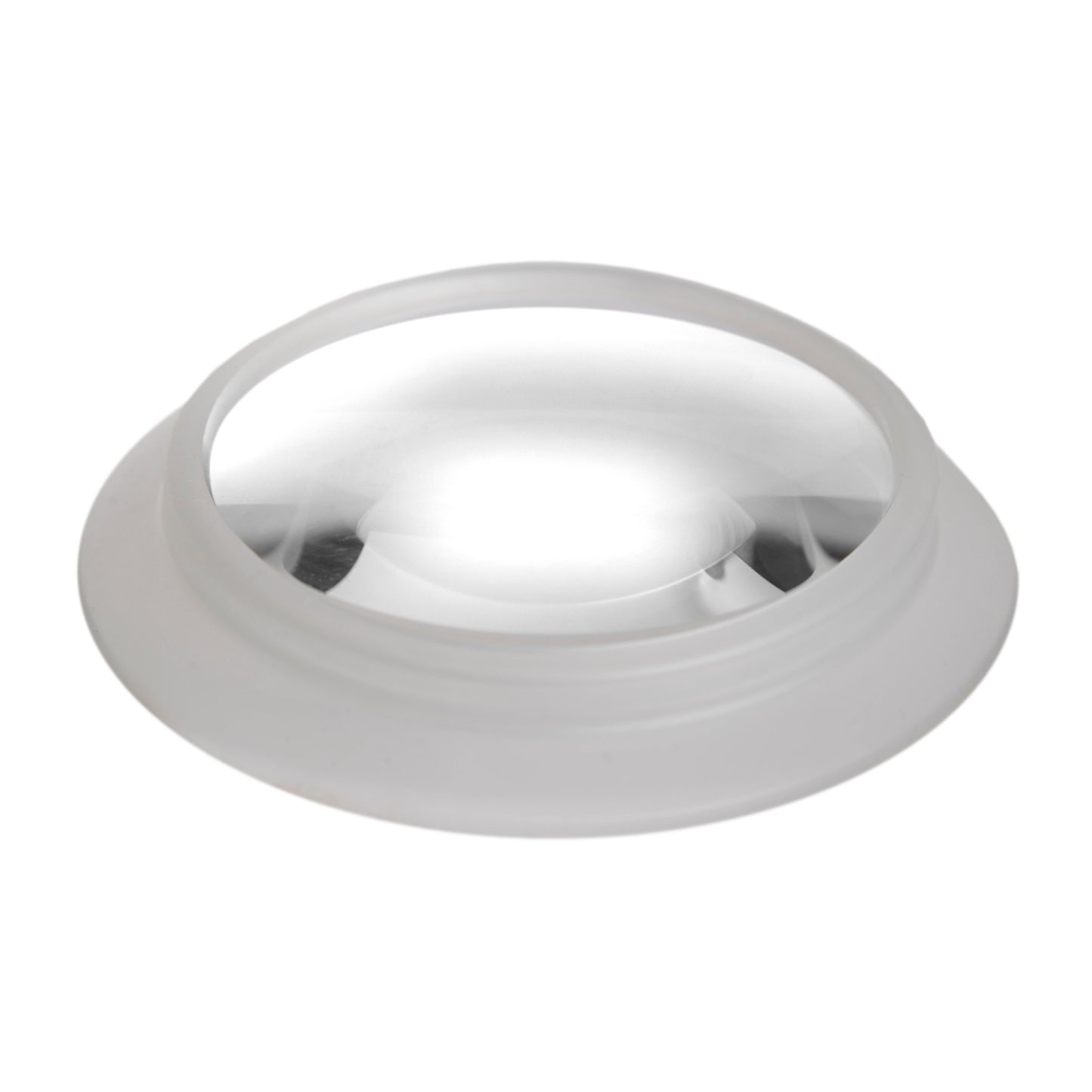

STAYS Lenses, added magnification with secondary lens
For additional magnification a secondary lens can be attached to any Luxo magnifier.
To apply the STAYS lens, simply moisten the silicon ring around the lens and affix it onto the primary lens. STAYS lenses are available in 4-, 6- and 10-diopter strengths, increasing magnification 100%, 150% and 250% respectively.
Self-Traction Accessory Yield System for use with KFM™ LED, WAVE® LED, LFM LED and Circus LED Magnifiers. 2” lens diameter (2.5” diameter including the silicon gasket frame).
5 Year Warranty
Colors
White
Mounting Options
Suction on primary glass lens
Technical Specifications
| Magnification Increase |
STAYS Lens 4D: 2X (100%) |
|---|---|
| Working Distance |
4-Diopter STAYS Lens: When used with a 3D/3.5D primary lens the working distance is 6". When used with a 5D primary lens the working distance is 4". |
| Magnification Increase |
STAYS Lens 6D: 2.5X (150%) |
|---|---|
| Working Distance |
6-Diopter STAYS Lens: When used with a 3D/3.5D primary lens the working distance is 4". When used with a 5D primary lens the working distance is 3.8". |
| Magnification Increase |
STAYS Lens 10D: 3.5X (250%) |
|---|---|
| Working Distance |
10-Diopter STAYS Lens: When used with a 3D/3.5D primary lens the working distance is 2.9". When used with a 5D primary lens the working distance is 2.6". |
