Luxo KFM™ LED Magnifier, 30" Reach Arm, (3-D or 5-D Lens) and (Clamp or Base)

KFL026028, KFL026029, KFL026030, KFL026127, KFL026128, KFL026152

KFM LED has a heavy-duty, all-metal construction with a sleek design, adjustable arm and excellent light output making it suitable for a variety of low vision applications.

Excellent Optics

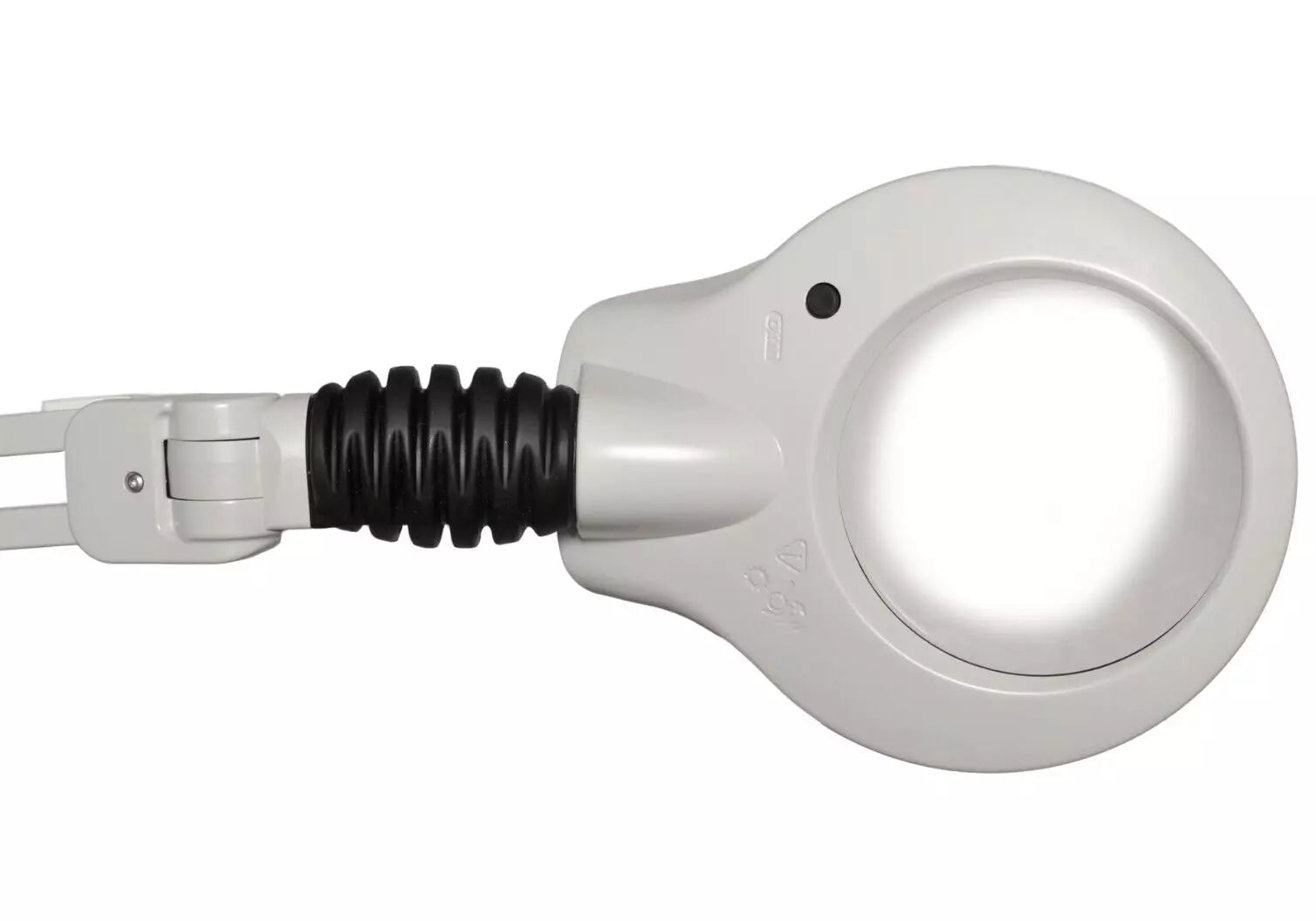

A 5″ diameter optical-quality glass lens combined with powerful LED lightsource, makes KFM LED one of the best multi-purpose heavy-duty round lens magnifier on the market today. The quality and exact positioning of the LEDs allows for virtually shadow-free magnification and excellent color rendering.

Maximum flexibility and precision
No knobs to tighten, nothing to adjust. A flexible, self-balancing shade and hands-free neck design allow the lamp head to be secured in any position. The spring-balanced arm provides maximum vertical and horizontal movement, and will always stay in the right position without drifting.

KFM LED is supplied with a 3- (1.78X) or 5-diopter (2.25X) 5″ diameter optical-quality glass lens. A cloth shade cover is provided to protect the lens from unwanted dust and debris.

LED: Lightsource of the future
KFM LED produces nearly 75% greater light output than traditional KFM models. KFM LED is equipped with LEDs arranged across two semi-circular modules. This design allows for virtually shadow-free magnification and excellent color rendering. The modules consume a total of 11W of energy, are infinitely dimmable, and include a 9/4 hour automatic shut-off functionality.

Dimensional Drawing

Technical Specifications

Light Source	9W dimmable LED modules arranged across two semi-circular modules. 11W total energy consumed. Infinite dimming 1-100%. 5700 lux at 13" focal length. 900 lumens. CCT: 4000K. CRI: 80.
Body Material	Heavy-duty internal-spring 45" or 30" parallel, three-pivot K-arm.
Mounting	Standard with edge clamp or weighted base. Additional mounting options are also available.
Optics	3- (1.75X) or 5-diopter (2.25X), 5" diameter optical-quality glass lenses are standard. For additional magnification, a secondary 4-, 6- or 10-diopter STAYS lens can be attached to the primary lens.
Power Supply	Supplied with cable and plug. An integrated auto shut-off will turn the light off after 9 or 4 hours.
Arm Technology	Heavy-duty internal-spring 45" or 30" parallel, three-pivot K-arm. A handle in the same design is available as an accessory. Color: Black, Light grey or White.
