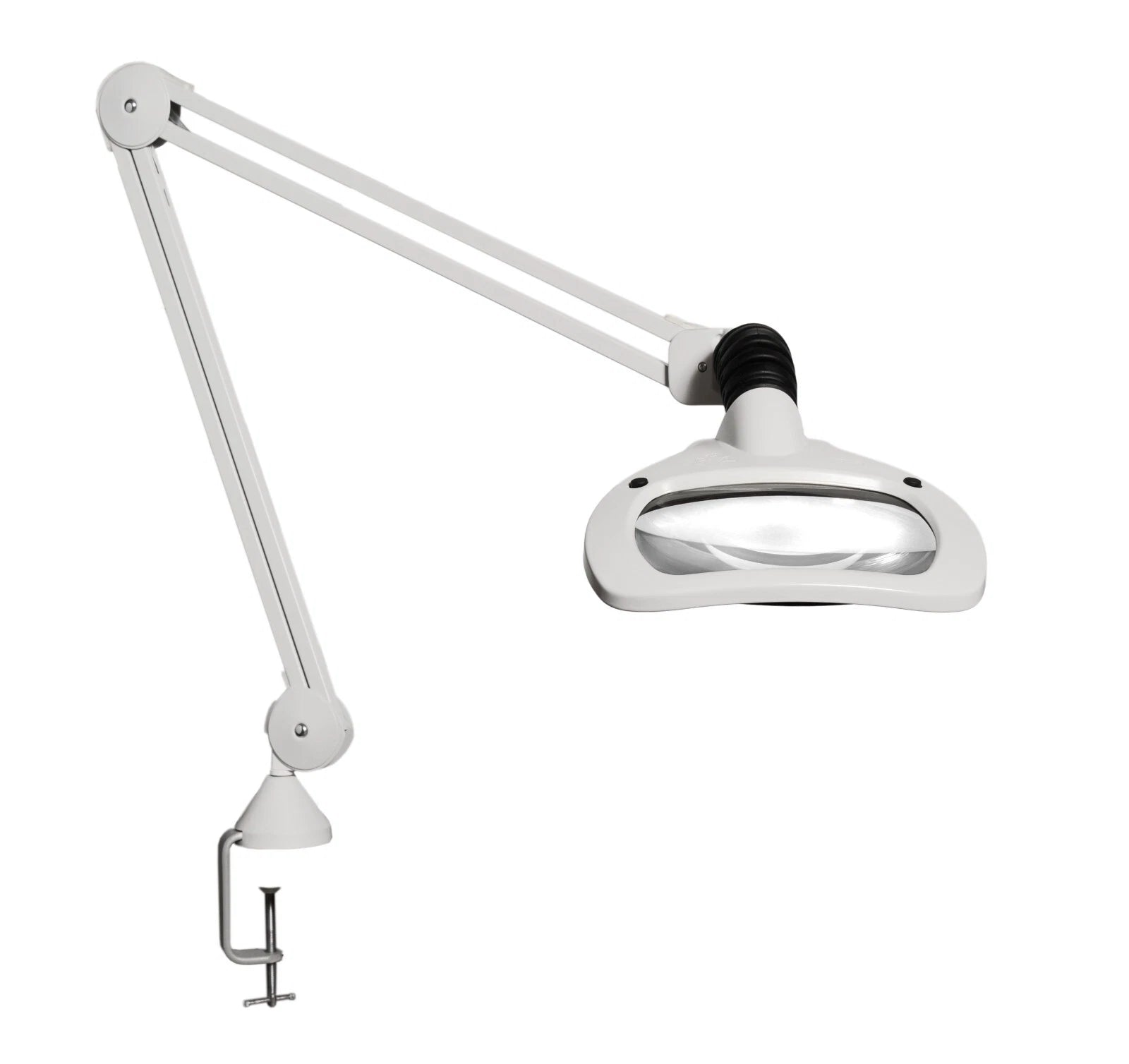

Luxo WAVE® LED Magnifier, 45" Reach Arm, (3.5-D or 5-D Lens) and Clamp
Luxo WAVE® LED Magnifier, 45" Reach Arm, (3.5-D or 5-D Lens) and Clamp
SKU:WAL026445
WAL025968, WAL025969, WAL026445
WAVE LED is a magnifier for a variety of applications. WAVE LED offer shadow-free magnification with light coming from both sides, as well as three-dimensional magnification with light coming from the left or right. The 3D-feature is especially welcome when working with delicate objects.
Maximum flexibility and precision

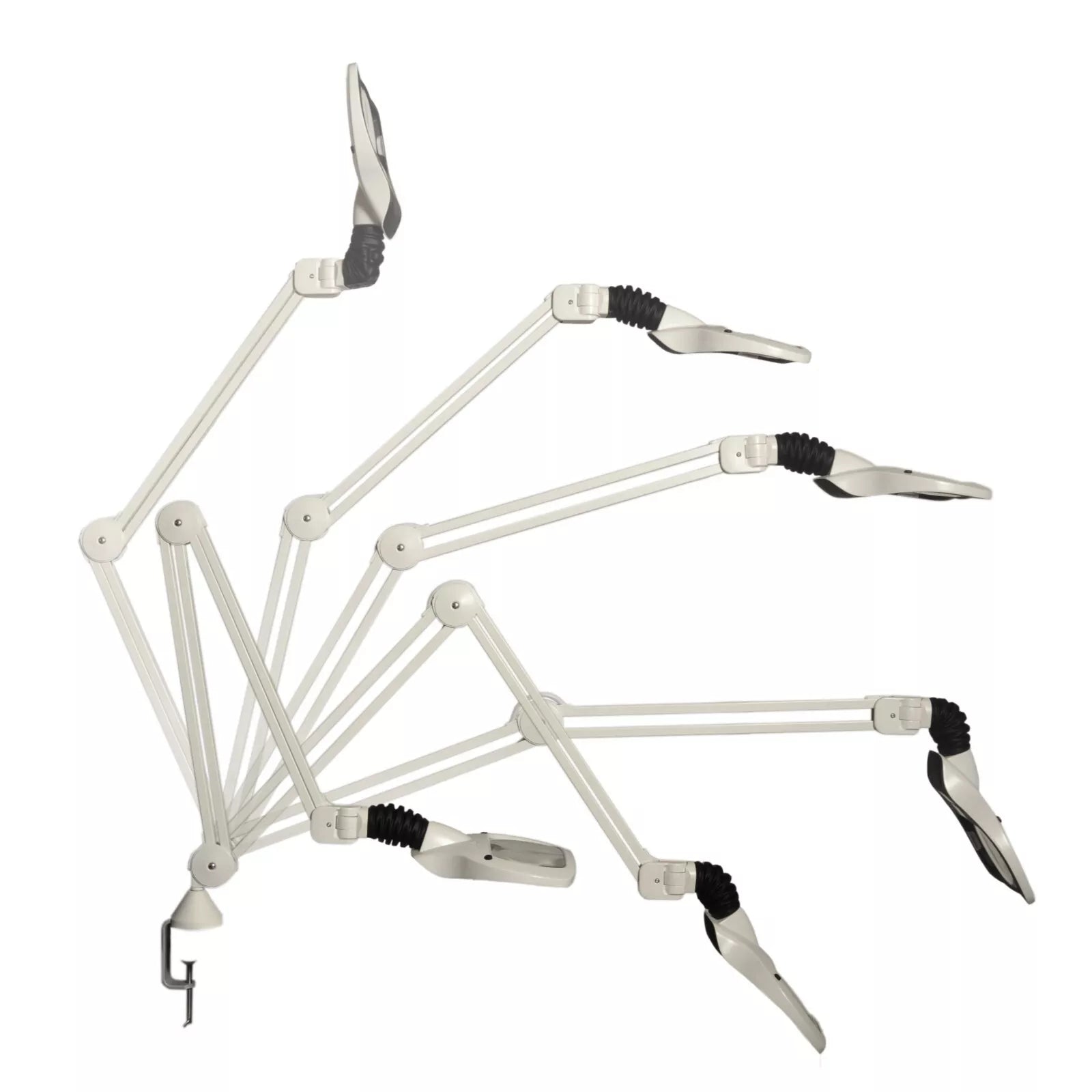

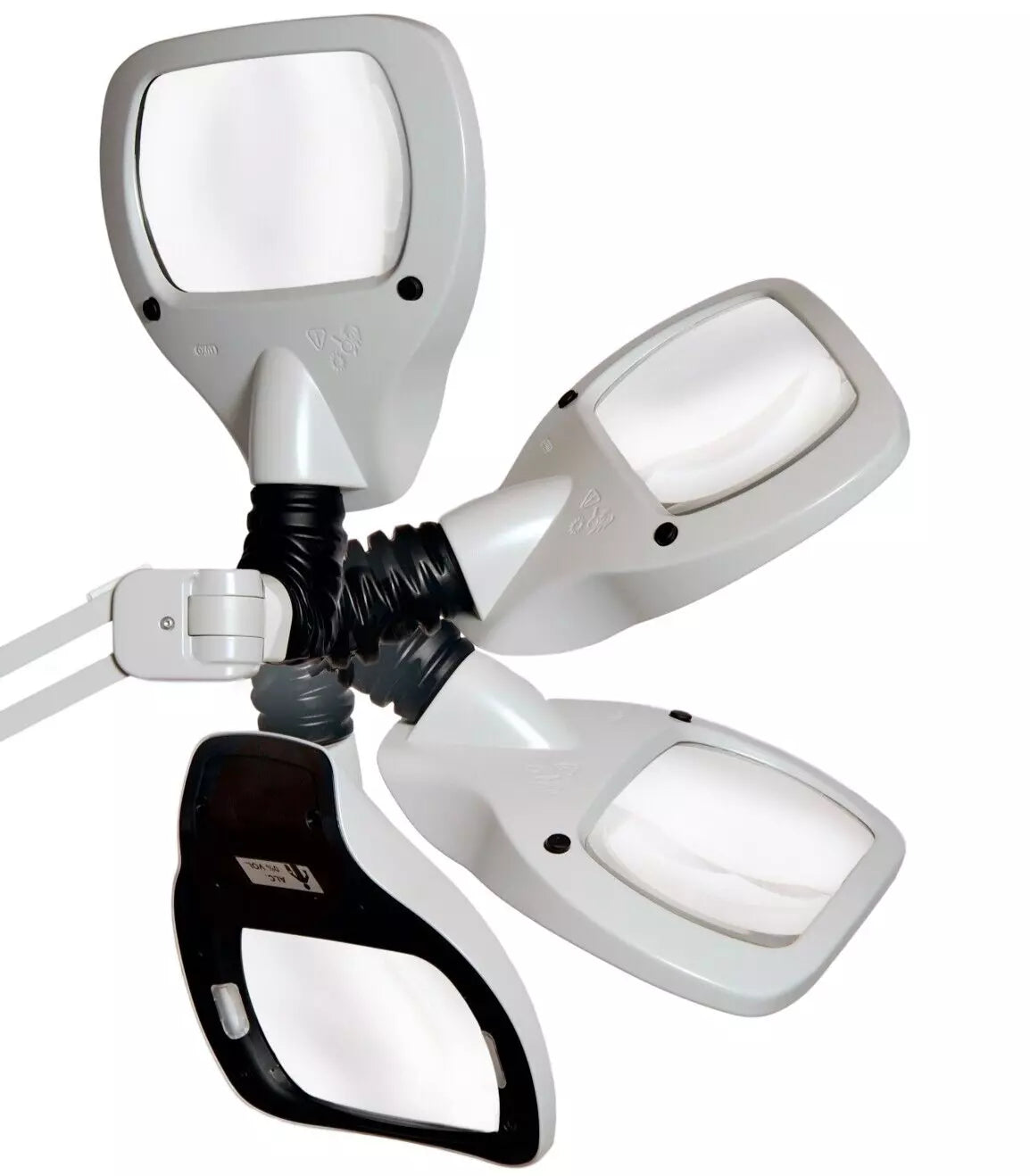

No knobs to tighten, nothing to adjust. The self-balancing shade and hands-free neck assembly make exact positioning easy. The spring-balanced arm provides maximum vertical and horizontal movement, and will always stay in the right position without drifting.
WAVE LED is supplied with a 3.5- (1.88X) or 5-diopter (2.25X) white crown optical-quality glass lens. A cloth shade cover is provided to protect the lens from unwanted dust and debris.
LED: Lightsource of the future

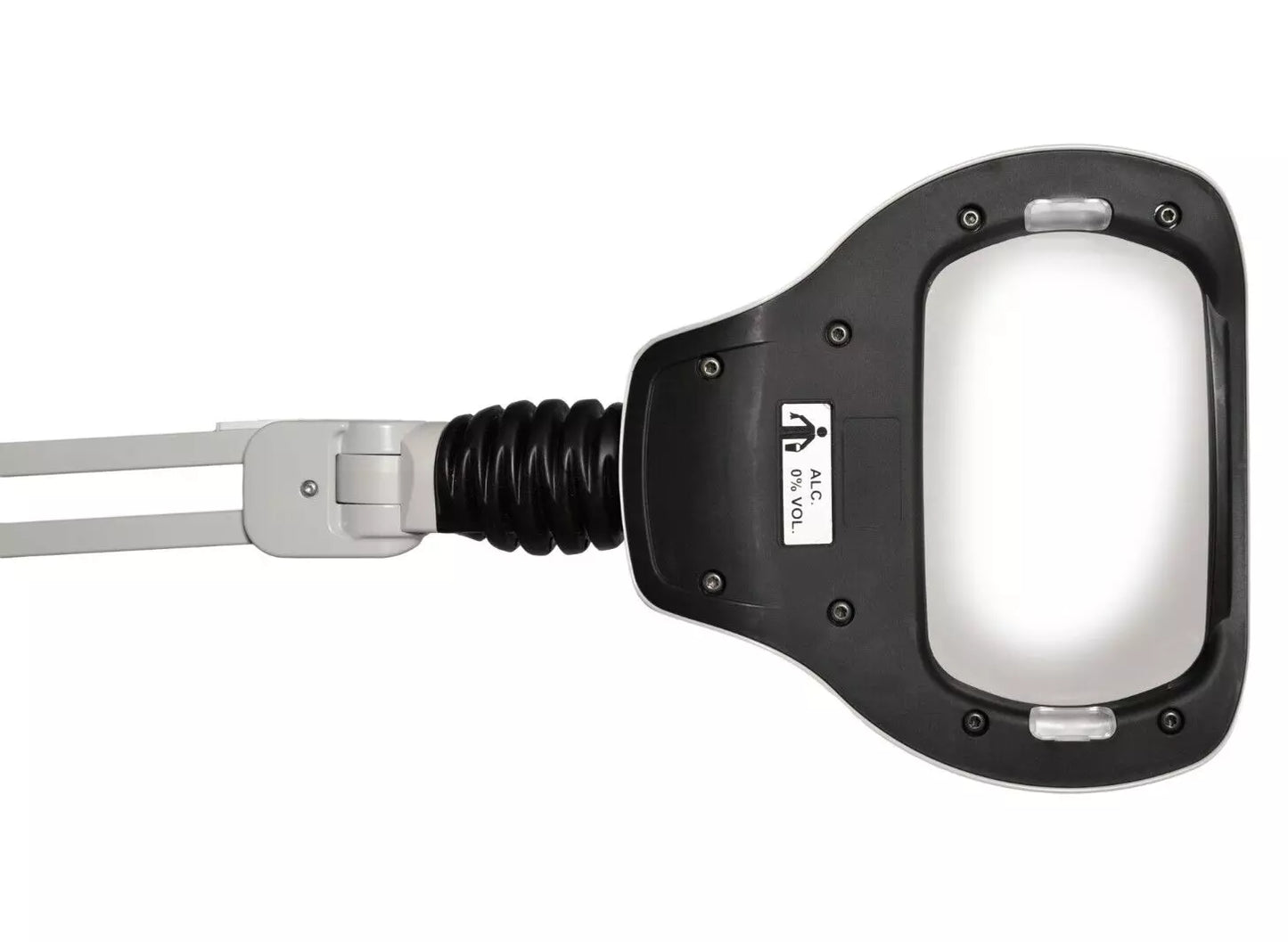

WAVE LED is equipped with two 6W LED modules, which are individually controllable. A 9/4 hour automatic shut-off feature and step dimming (0-50-100%) further ensure energy savings.
5 Year Warranty
Colors
Light grey or White.
Mounting Options
Standard with an edge clamp or weighted base. Additional mounting options are available.
Dimensional Drawing
Technical Specifications
| Light Source | Two 6W dimmable LED modules. 13W total energy consumed. Step dimming: 0-50-100%. 4600 lux at 11" focal length. CCT: 4000K. CRI: 80 |
|---|---|
| Body Material | Heavy-duty internal-spring 45" or 30" parallel, three-pivot K-arm. |
| Mounting | Standard with edge clamp or weighted base. Additional mounting options are also available. |
| Optics | 3.5- (1.88X) or 5-diopter (2.25X), 6.75" x 4.5" rectangular white crown optical-quality glass lenses are standard. For additional magnification, a secondary 4-, 6- or 10-diopter STAYS lens can be attached to the primary lens. |
| Power Supply | Supplied with cable and plug. An integrated auto shut-off will turn the light off after 9 or 4 hours. |
| Arm Technology | Heavy-duty internal-spring 45" or 30" parallel, three-pivot K-arm. |
