microFOCUS 4K Autofocus Digital Inspection System, Flex Arm VE, 1- 18x Zoom, Integrated Led Ring Light, Software for Image Capture, Measurement & Annotation
Speed, Resolution & Convenience
in an Easy-to-Use, Stand-alone
Inspection Solution!
- Full 4K live images with 1x - 18x optical zoom
- Built-in software for image capture, processing, calibration, measurement and more!

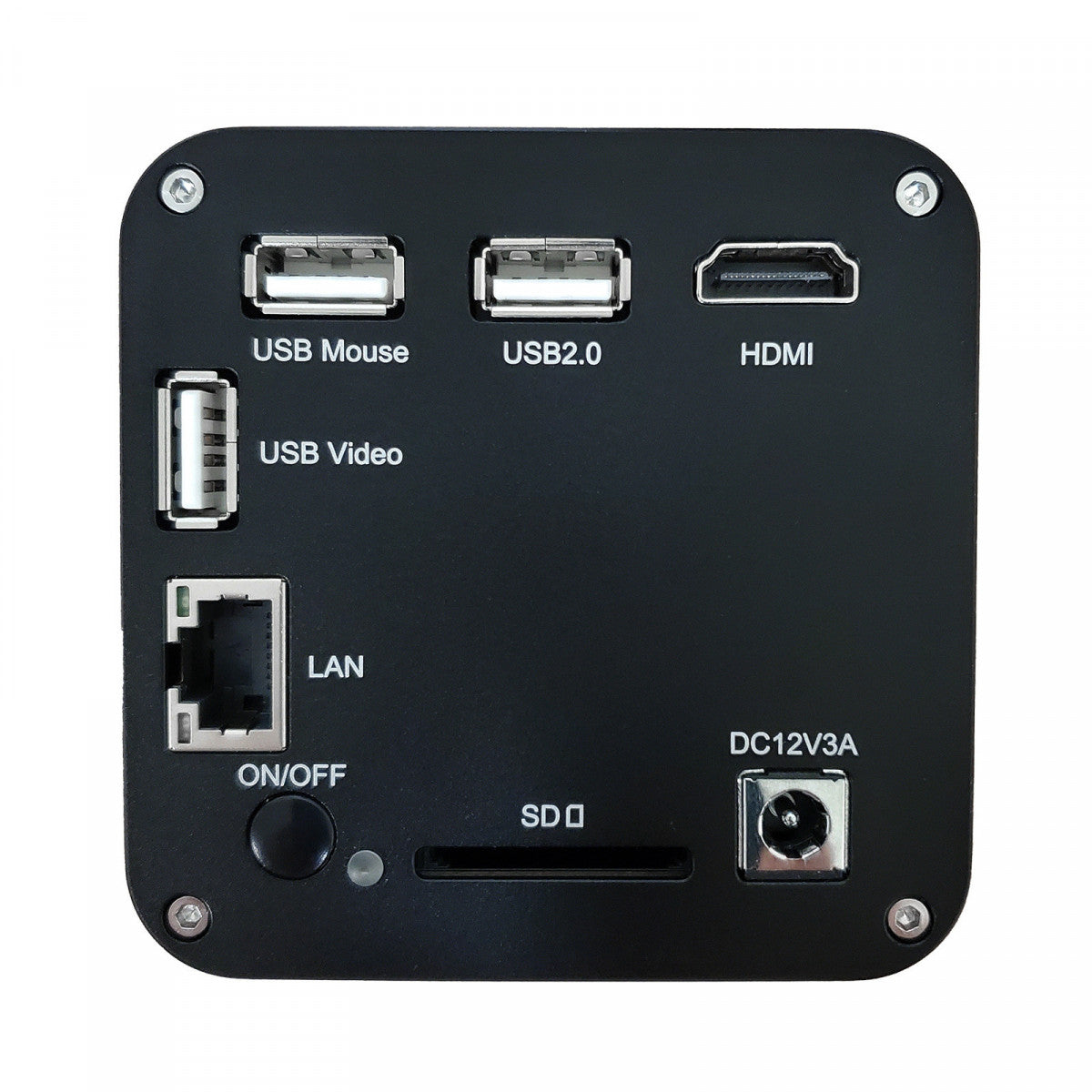

- Ports for wireless USB mouse (controls built-in software), HDMI for live video streaming, save images to SD card or USB flash drive, data transfer via USB Video port or LAN Ethernet connection.

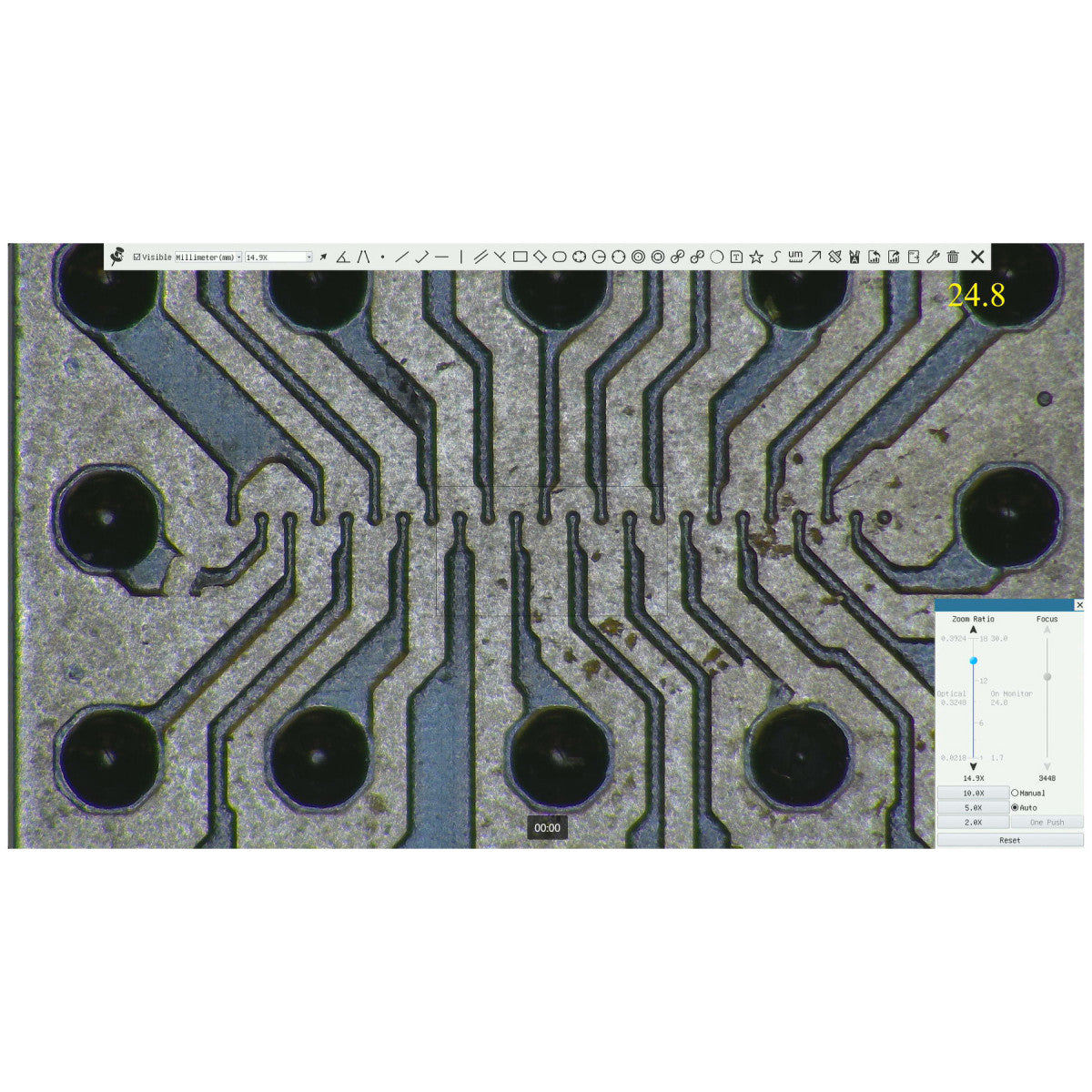

- Live measurement and annotation tools
- Flexibility to save images, video and measurements to a USB flash drive or SD card
- Compare live with saved images using the split screen function
- Review saved images and video in the gallery

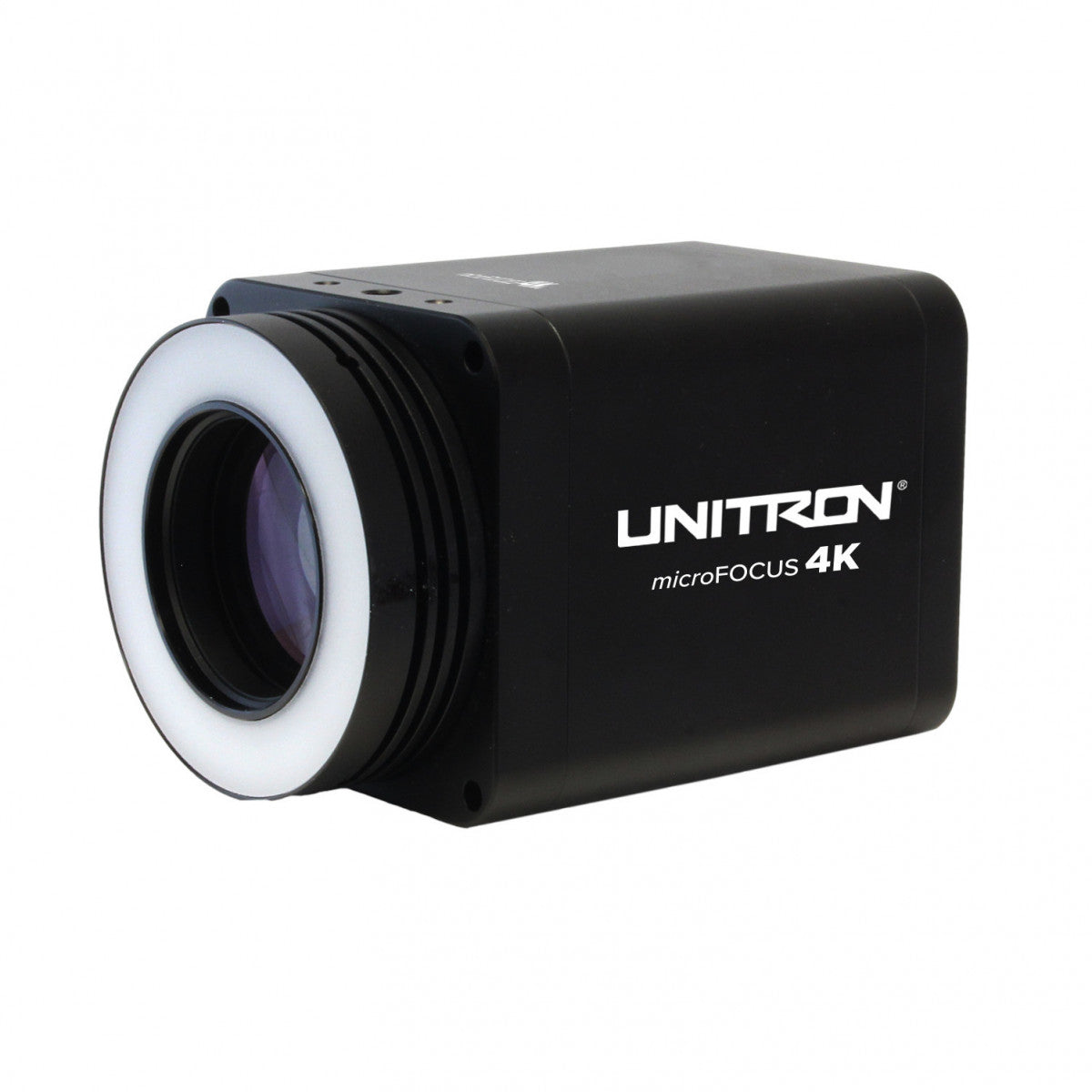

- Eliminate bench clutter with the wireless mouse and integrated LED ring light
- 4K/1080p auto-switching to accommodate monitor resolution

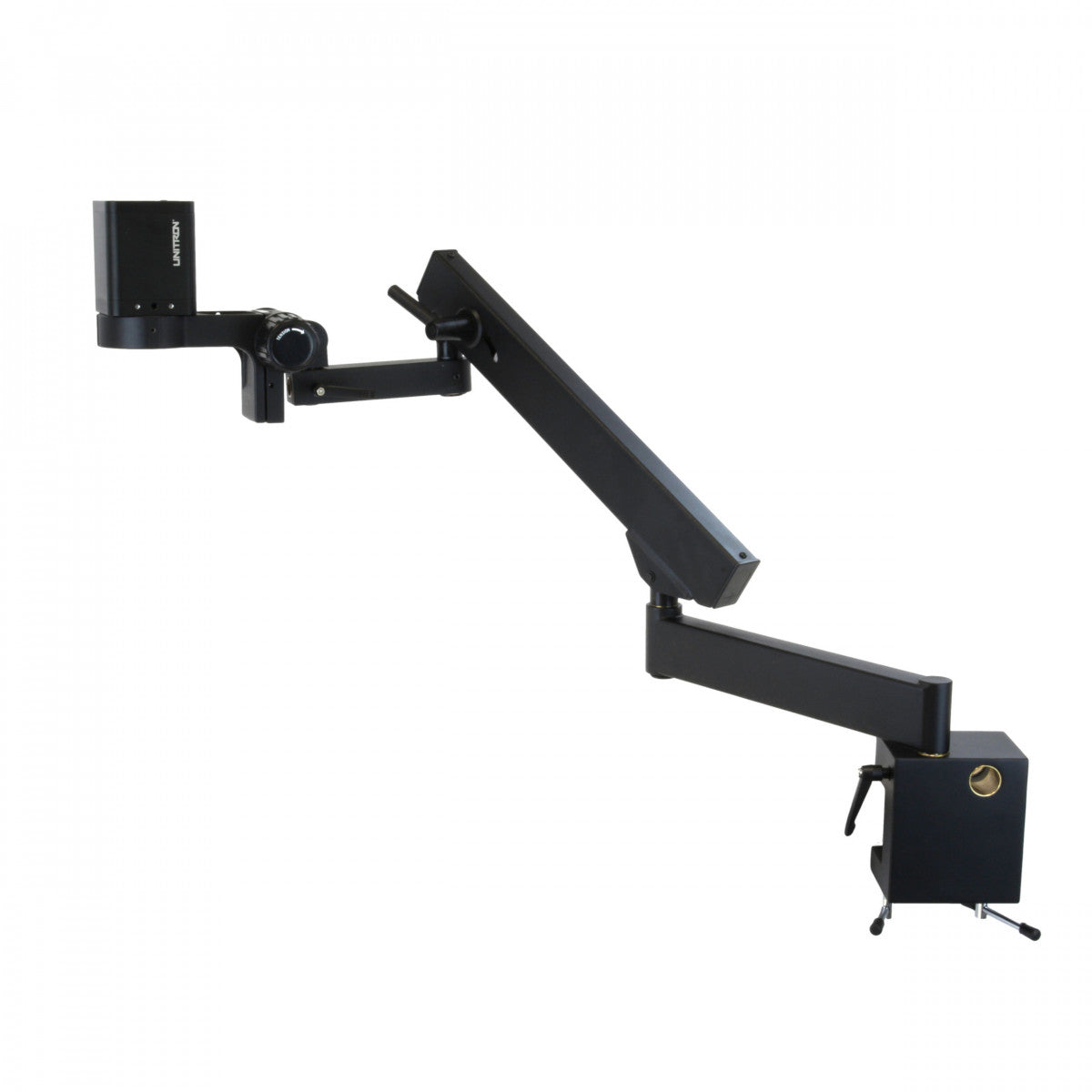

- Flex arm with C-clamp and bonder arm included
- Ø76mm mounting ring (OD of LED ring light) allows easy mounting to boom, pole or flex arm stands with standard focus mounts. Other mounting options are available via 2 x M4 holes or single ¼-20 threaded hole for mounting to a copy stand, tripod, and more!
- Use our AccuView or AccuView Lite PC software for expanded control and enhanced image processing and analysis (MacOS supports only AccuView Lite)

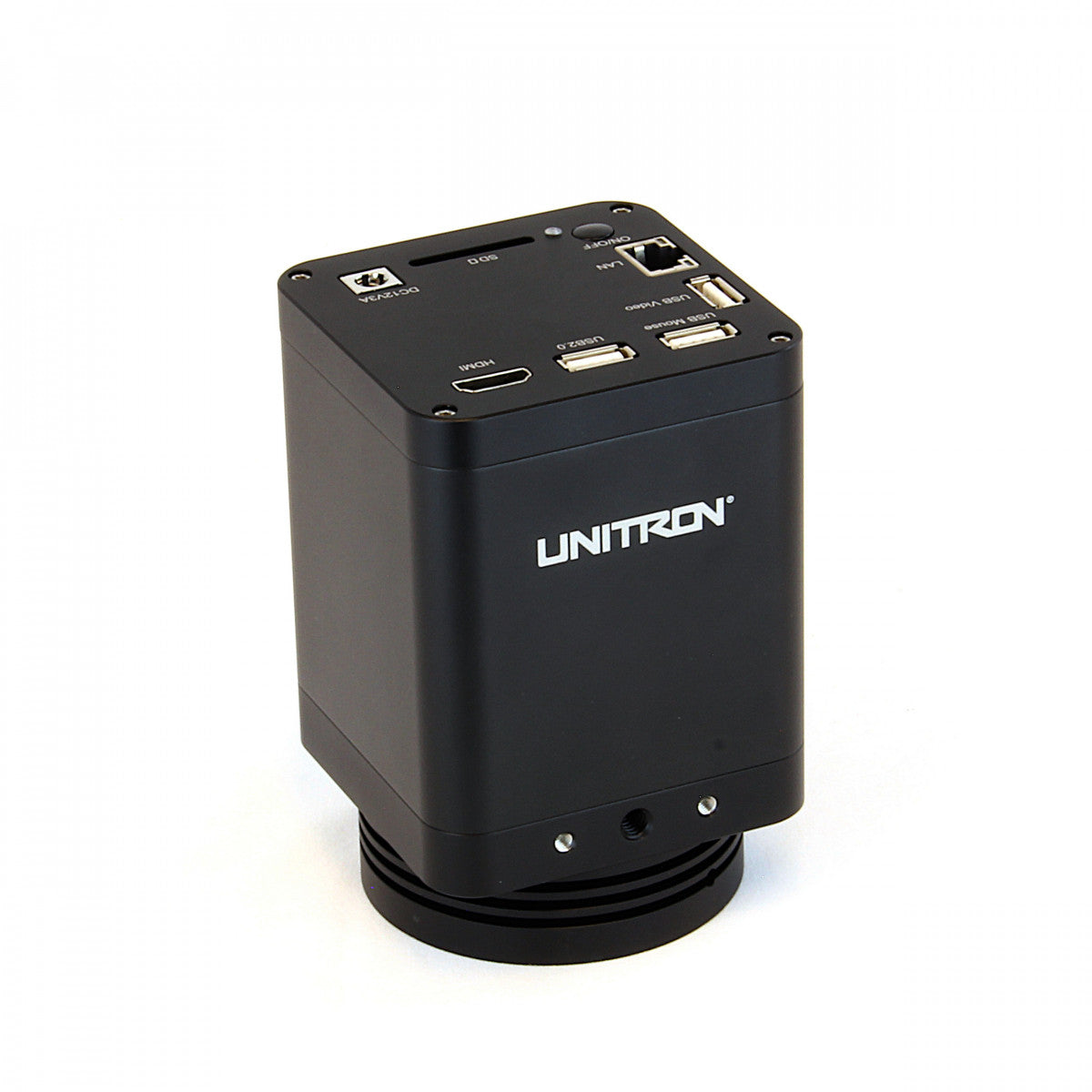

The NEW microFOCUS 4K autofocus digital inspection microscope from UNITRON features built-in software for operation without the need for a PC, and includes robust features for image capture and processing, calibration, measurement, and illumination control of the included LED ring light.

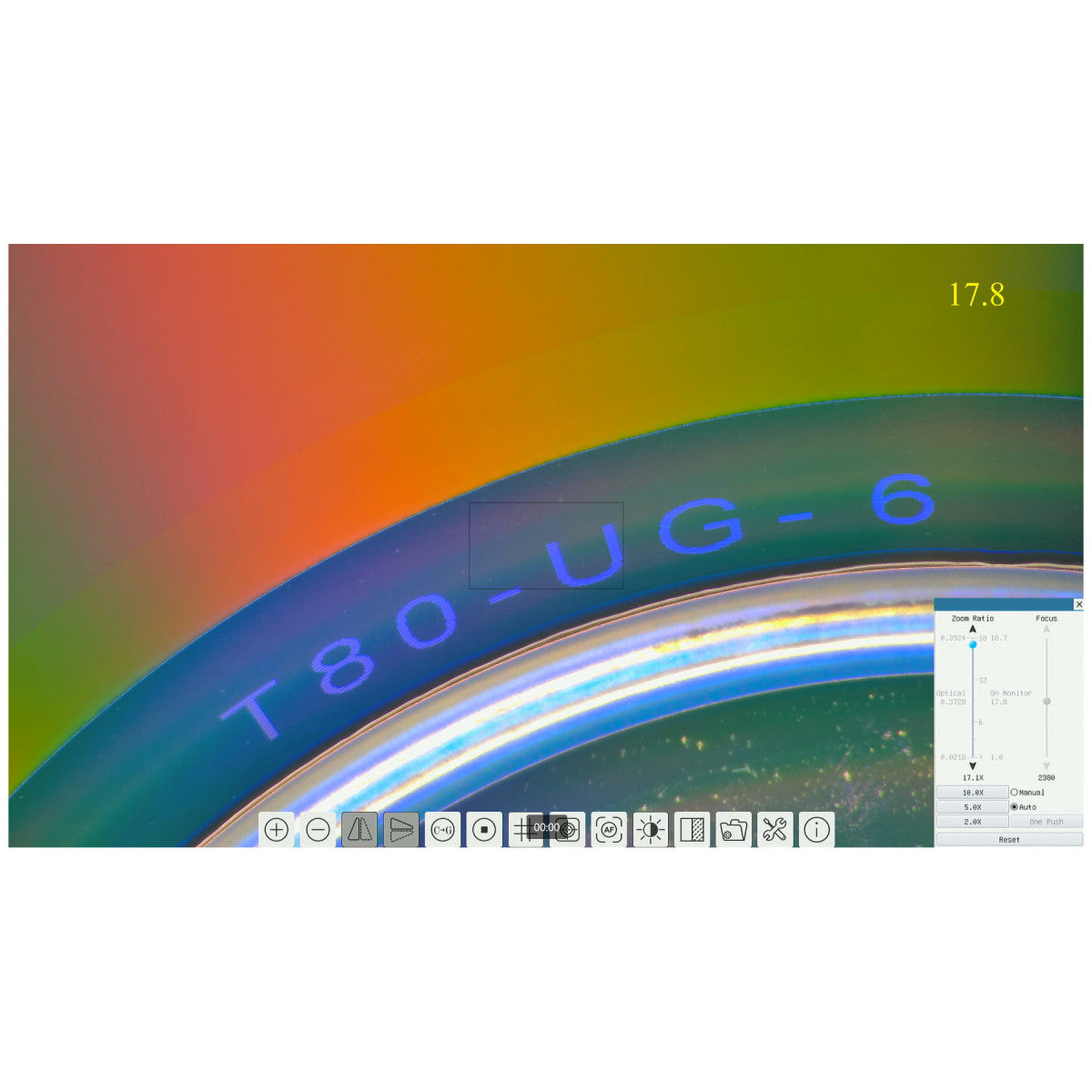

Actual magnification is displayed right on the monitor. Experience outstanding full 4K image quality with no image lag. The microFOCUS 4K is the perfect solution for streamlining your inspection process.
| MICROSCOPE | |
| Sensor | Sony IMX415 STARVIS CMOS, color |
| Sensor Size | 1/2.8” (5.57mm x 3.13mm) |
| Pixel Size | 1.45μm |
| Resolution | 8MP (3840px x 2160px) |
| Frame Rate | 30fps @ 3840x2160 (HDMI, Ethernet, USB) |
| Operating Environment |
USB mouse: control built-in software USB 2.0: Image storage (USB flash drive) or data transfer to PC (requires AccuView/AccuView Lite) HDMI: Image streaming to monitor LAN: Data transfer via Ethernet connection (requires AccuView/AccuView Lite) SD Card: Image storage (not included) |
| Stand |
Pole stand, black and white stage insert, 213mm (L) x 262mm (D) x 390mm (H), fixed stage clips |
| Monitor | User-supplied 4K or HD monitor; Optional 13.3” attachable 4K monitor, or user-supplied HDMI monitor |
| Power | DC12V3A (power adapter included; UL/CE/FCC) |
| In the microscope box | microFOCUS 4K with AF lens, attachable LED ring light, wireless mouse, HDMI cable (2m), USB 2.0 cable (2m), USB memory stick (32GB), USB stick with PC software, USB WiFi adapter, 12V/3A power supply |
| OPTICAL | |
| Working Distance | 250mm |
| Depth of Field | 205mm - 255mm |
| Zoom Range | 1x – 18x |
| Field of View (FOV) |
1x: 255mm x 145mm 18x: 14.2mm x 8mm |
| Resolution | 160 lp/mm |
| BUILT-IN SOFTWARE | |
| User Interface | Control with USB mouse (included) |
| Image Capture | 8MP (3840x2160), JPG or TIF, save to SD card or USB flash drive |
| Video Record | 8MP (3840x2160), 30fps, H264/H265 encoded MP4, save to SD card or USB flash drive |

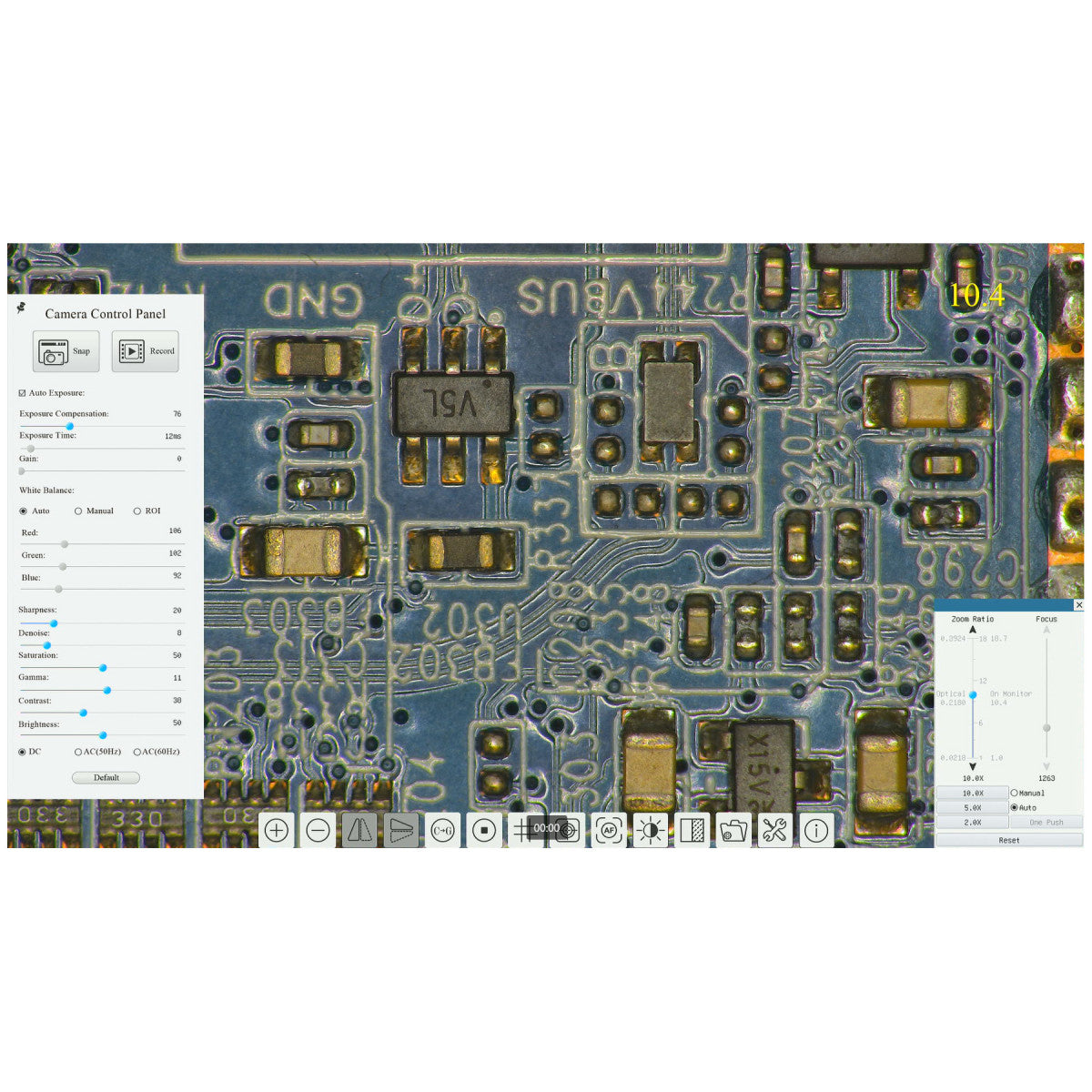

| Camera Control Menu | Includes: Exposure, Gain, White Balance, Sharpness, Denoise, Saturation, Gamma, Contrast, Brightness |
| Measurement Tools | Includes: Calibration, Measurement, Measurement Parameter Export |
| Synthesis Controls | Includes: Zoom, Flip, Freeze, Crosshair, LED Control, Autofocus, Comparison, Browser, Setting, Version info |
| Autofocus Controls | Includes: Zoom, Autofocus, One Push, Manual Focus, Reset |
| PC SOFTWARE (AccuView/AccuView LITE) | |
| White Balance | Auto white balance |
| Color Technique | Ultra-Fine Color Engine |
| Recording | Still image or video |
| AccuView PC SOFTWARE ENVIRONMENT (LAN/WLAN/USB Video output) | |
| White Balance | Auto White Balance |
| Color Technique | Ultra-Fine Color Engine |
| Capture/Control |
Windows: AccuView macOS: AccuView Lite |
| Data Recording | Still image or video |
| Operating System |
Windows 7/8/8.1/10 (32bit & 64bit) (AccuView) macOS X (AccuView Lite only) |
| PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or higher Memory: 4GB or more Ethernet Port: RJ45 (for LAN connection) Display: 19" or larger |
