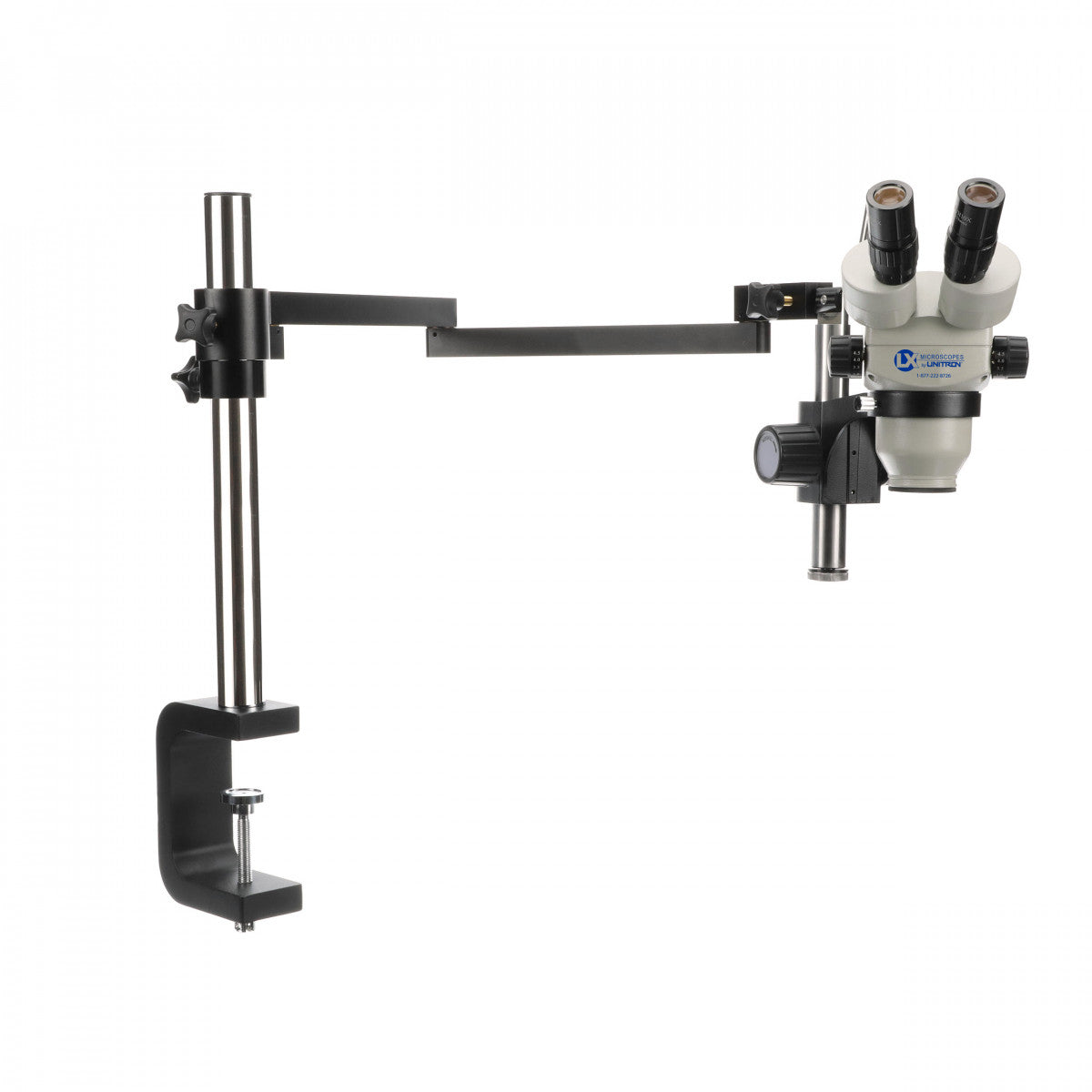

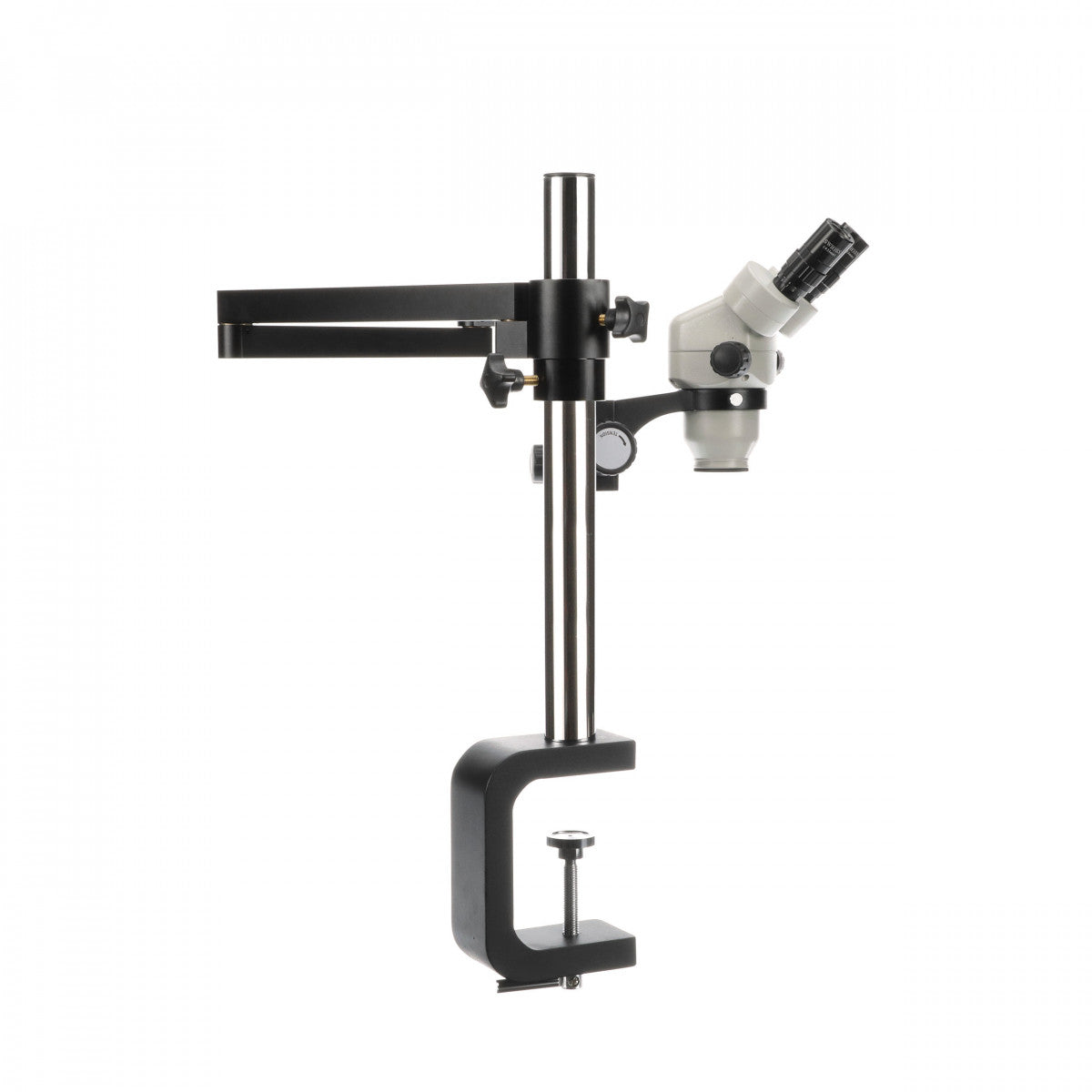

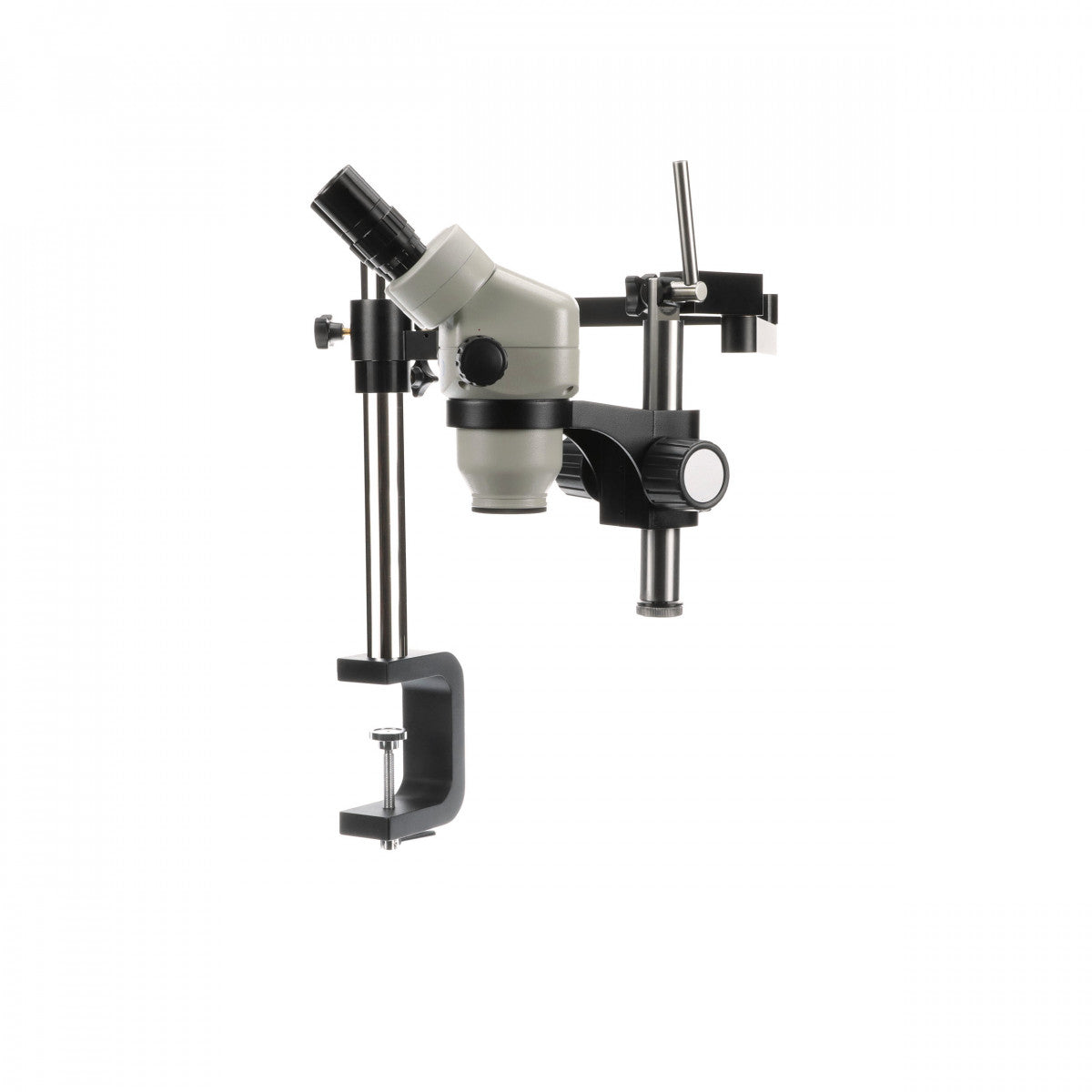

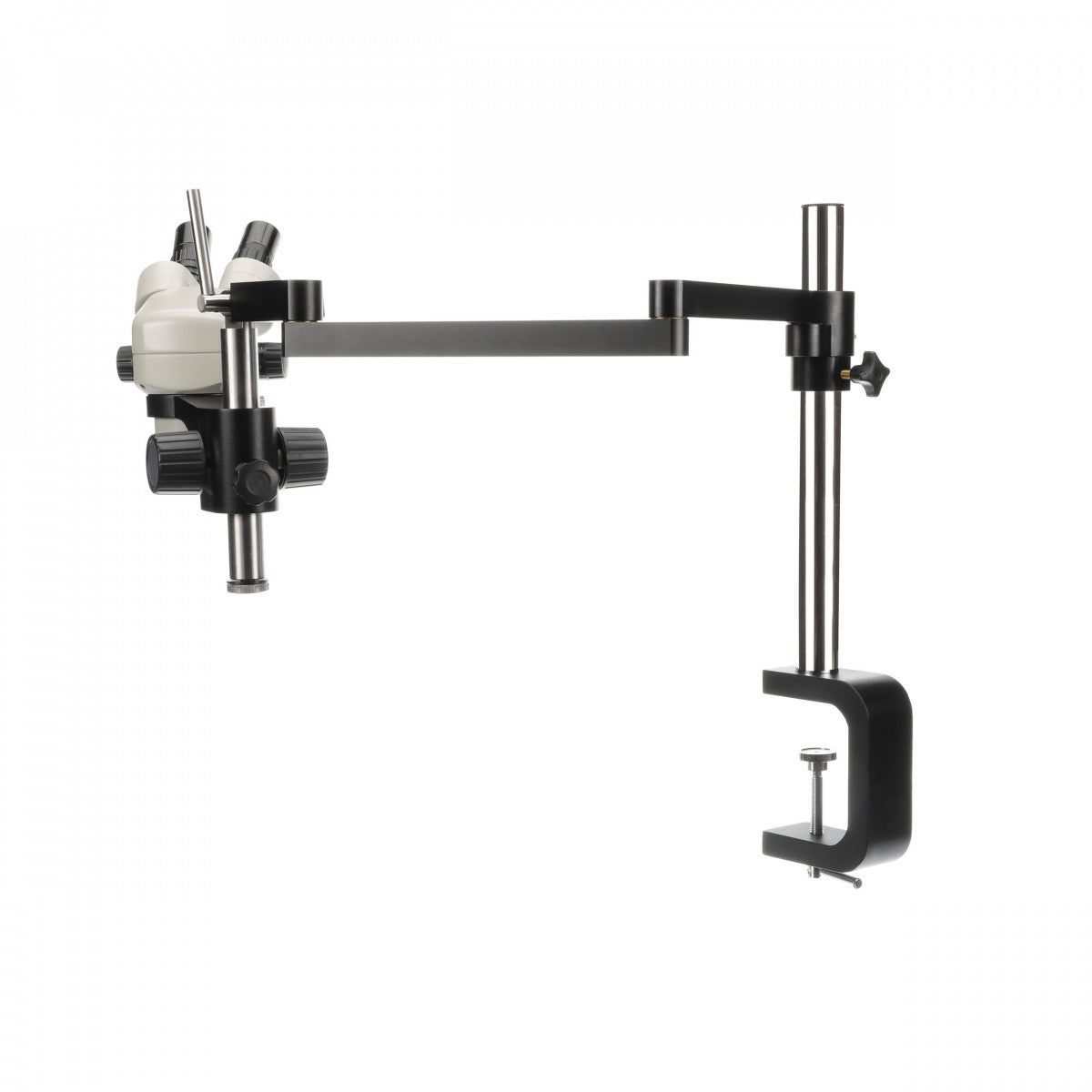

System 273AC, S-Z 23mm Binocular, Articulating Arm with Clamp
Specifications
Binocular viewing head
Baked-on powder coat for superb durability
Super widefield 10x/23mm eyepieces with eyeshields
High-quality achromat lenses with anti-reflective coatings
0.7x – 4.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head
Click-stops on the zoom knob at 1.0, 2.0, 3.0 and 4.0 ensure repeatable magnification changes
Magnification range 7x-45x (with 10x eyepieces)
8″ working distance (when used with optional 0.5x reducing lens); Standard working distance with 1.0x lens shield is 118mm
Heavy duty cast aluminum housing
Articulating Arm with c-clamp; articulating arm extends 34" in length, has a 12" vertical range of motion and a maximum clearance of 16" above the benchtop surface
