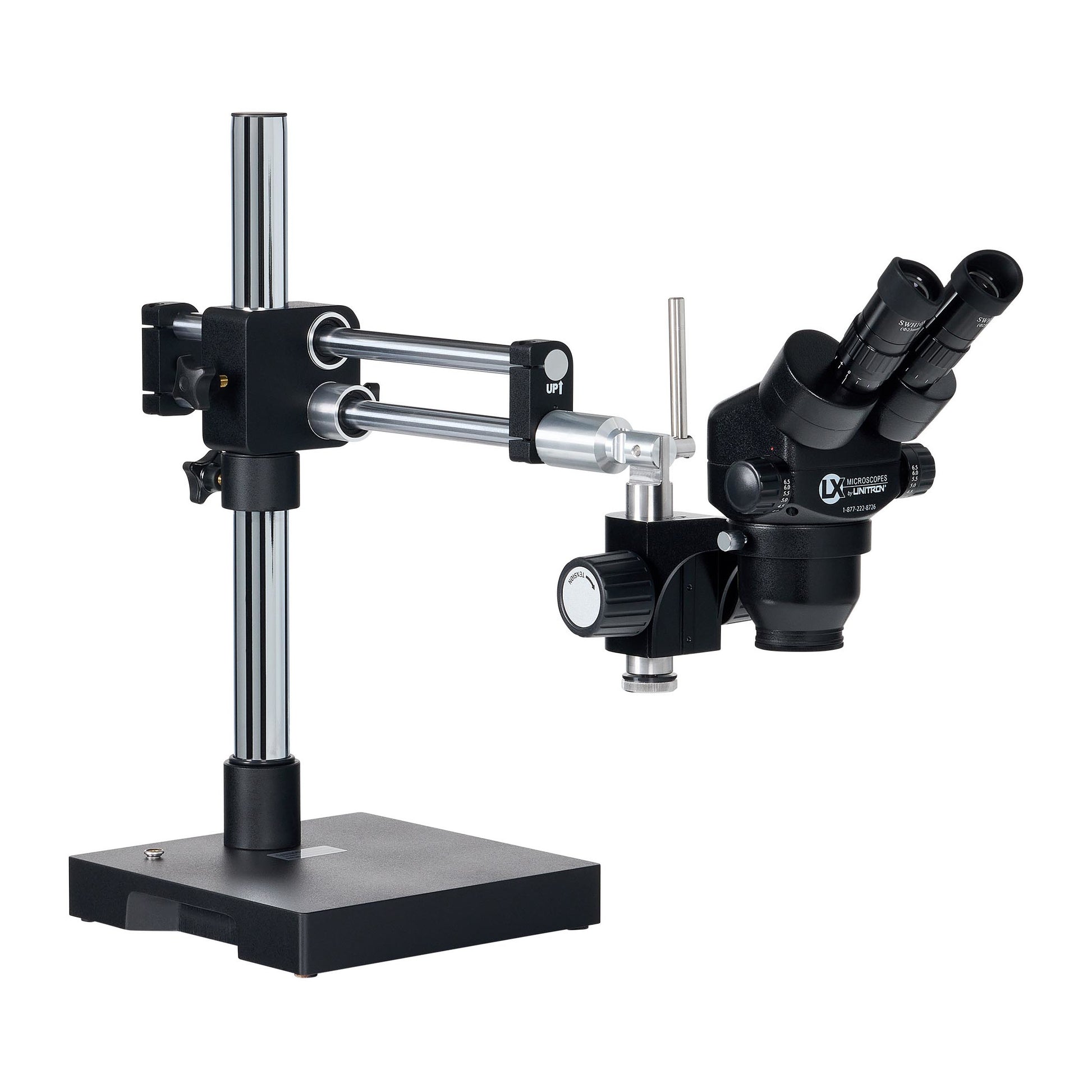

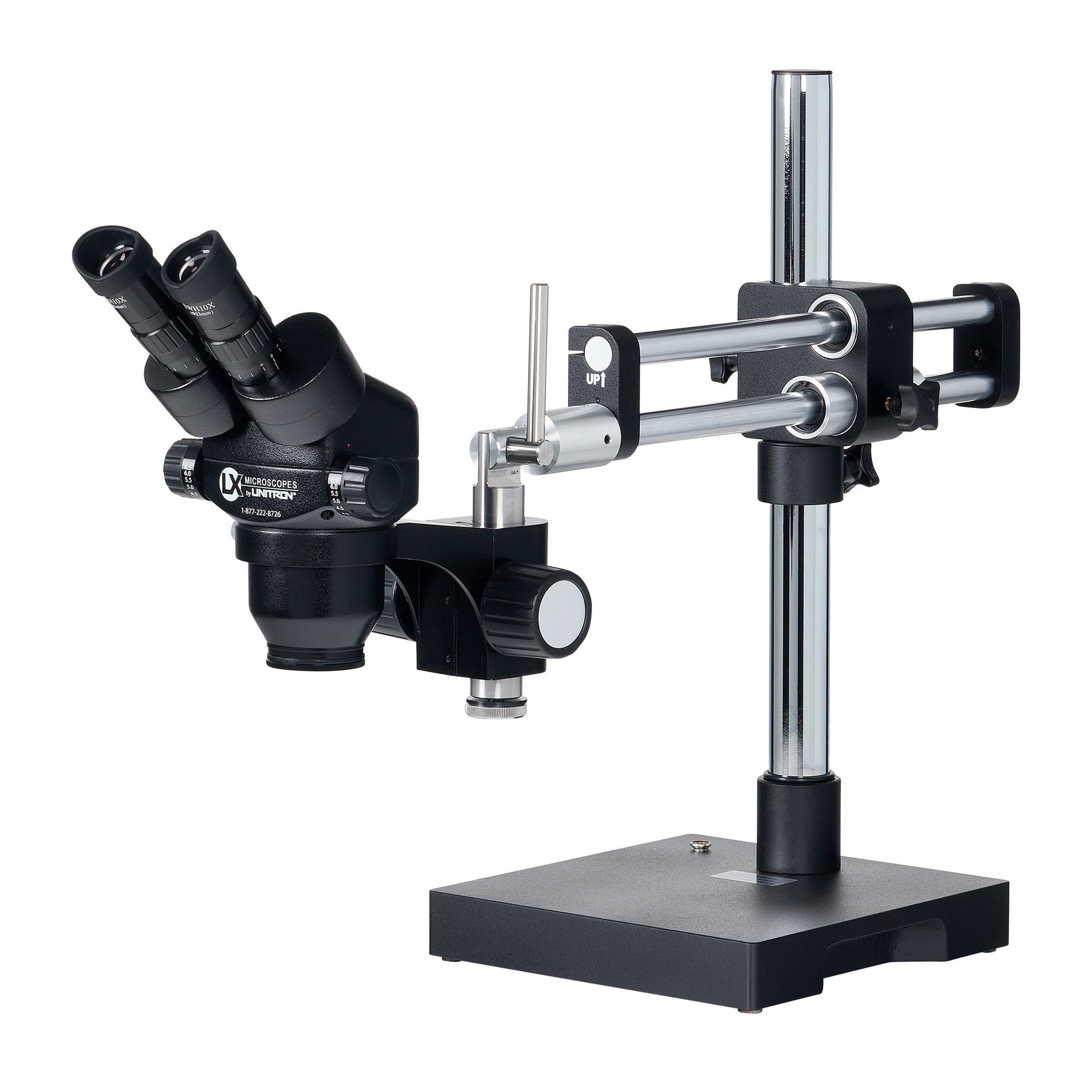

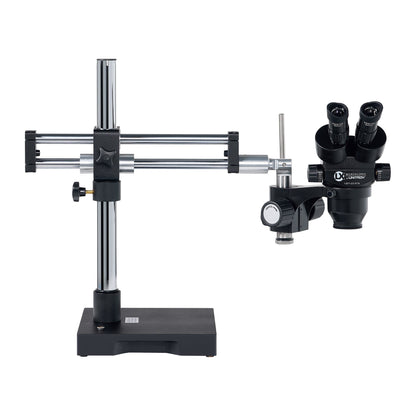

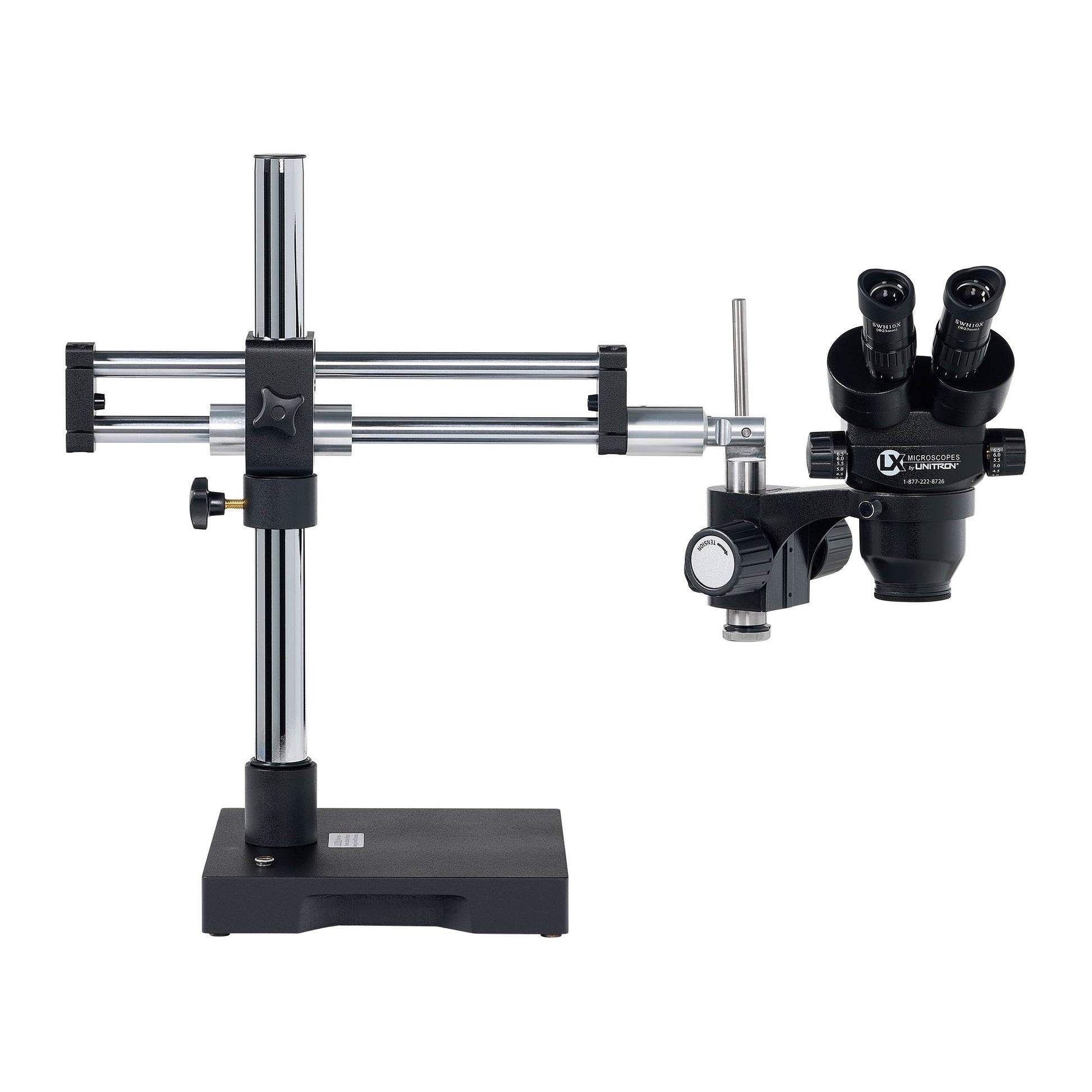

System 273RB-ESD, S-Z 23mm Binocular, 10X-65X, RB Stand, ESD-Safe
Specifications
ESD-safe. Body and stand feature baked-on powder-coat with a metal-laced paint that measures 105Ω/sq. (static dissipative) and include 10mm static grounding cables, metal boom stand bushings and metal pads on the microscope base.
Binocular viewing head
Super widefield 10x/23mm eyepieces with eyeshields
High-quality achromat lenses with anti-reflective coatings
1.0x – 6.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head
Click-stops on the zoom knob at 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 and 6.5 ensure repeatable magnification changes
Magnification range 10x-65x (with 10x eyepieces)
Working distance 110mm (WD 195mm if used with a 0.5x reducing lens)
Heavy duty cast aluminum housing
Dual boom roller-bearing stand with 17.5″ vertical and 22″ horizontal reach (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.
