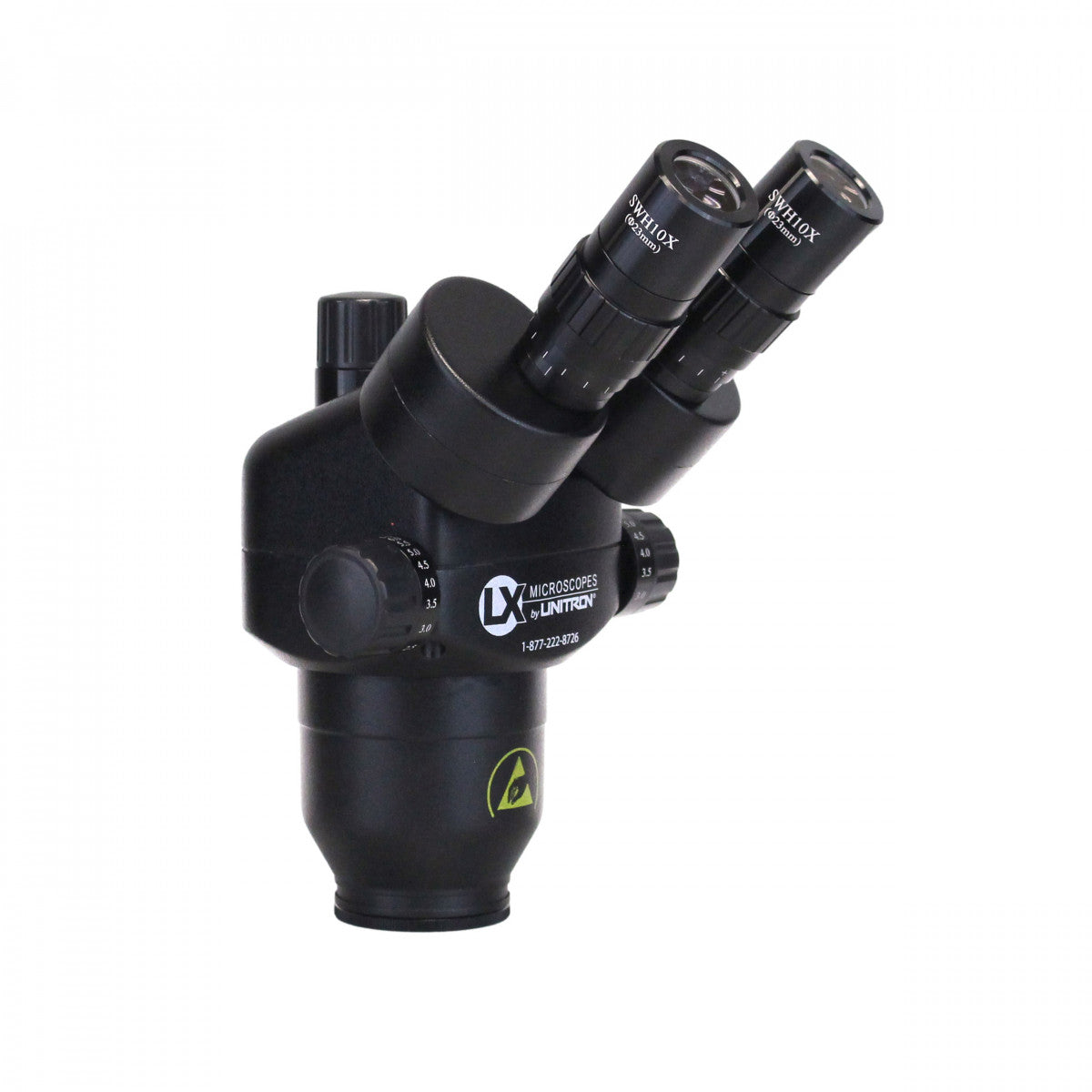

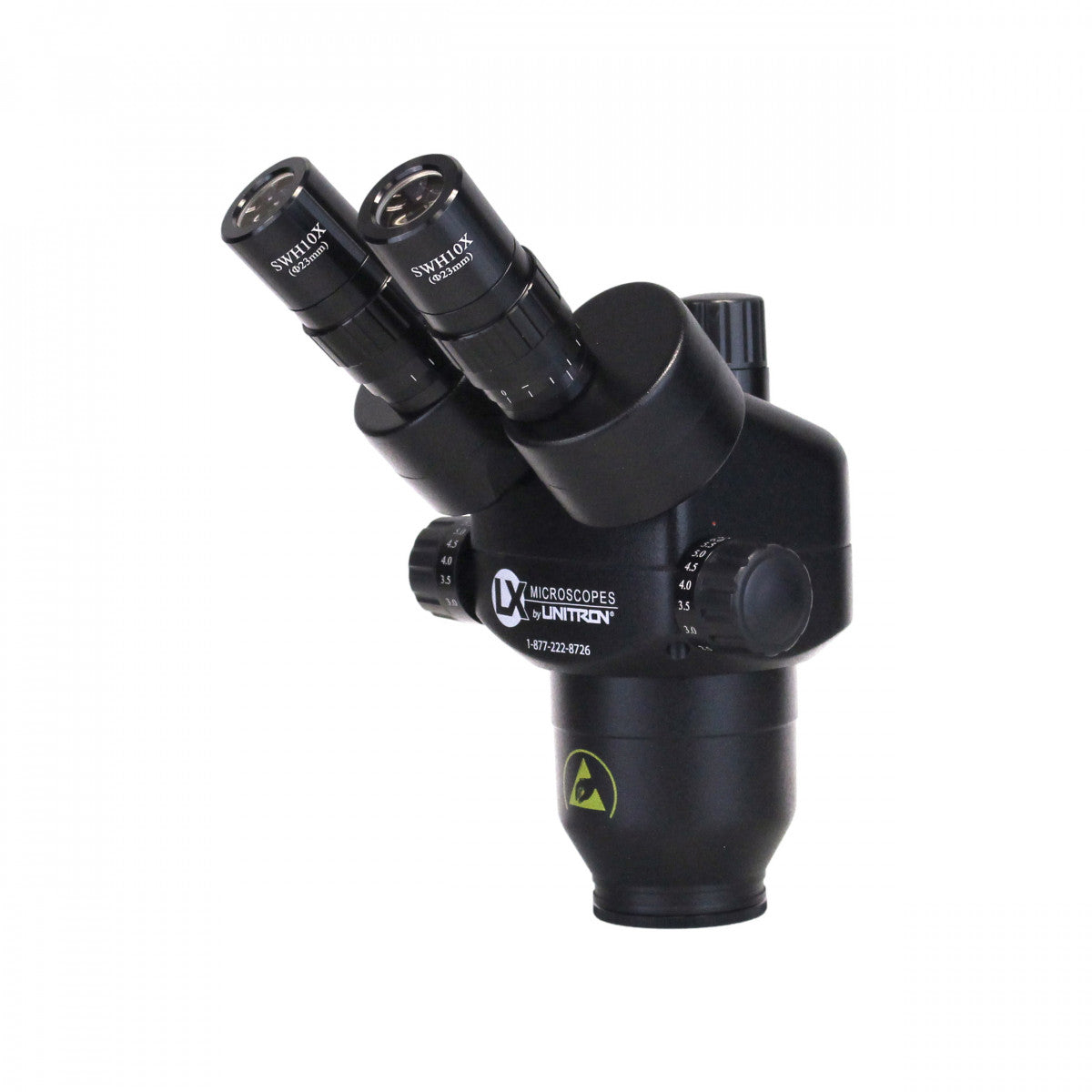

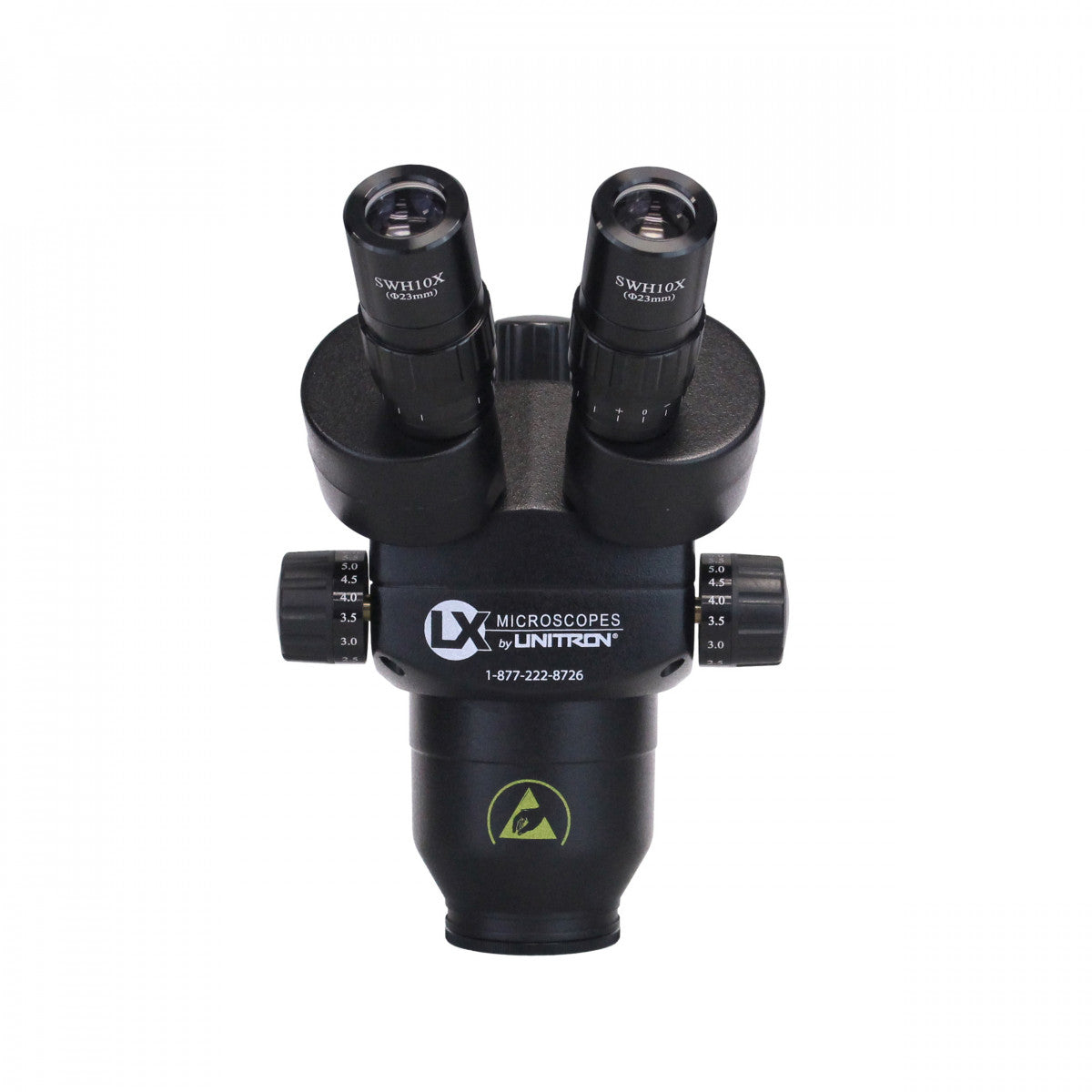

System 373 1065 ESD-Safe Trinocular Stereo-Zoom Body, 10X-65X, 10X Eyepieces Head Only

System 373 1065 ESD-Safe Trinocular Stereo-Zoom Body, 10X-65X, 10X Eyepieces Head Only

23788-ESD

$2,150.00
$2,150.00
Sale Sold out

23788-ESD

System 373 1065 ESD-Safe Trinocular Stereo-Zoom Body, 10X-65X, 10X Eyepieces Head Only

Specifications

  • TRU Trinocular zoom stereo body. Simultaneously view the sample on a monitor and through the eyepieces.
  • ESD-safe Body features baked-on powder-coat with a metal-laced paint that measures 105 Ω/sq. (static dissipative)
  • Achromatic lenses with anti-reflective coatings
  • Magnification range 1.0x – 6.5x (10x to 65x when used with included 10x eyepieces)
  • Click-stops on the zoom knobs ensure repeatable magnification changes
  • Working distance 110mm (WD 195mm if used with a 0.5x reducing lens)
  • Inclined 45 degrees
  • Cast alloy aluminum body, all metal gears
  • Fits focus mounts with 76mm diameter yoke
  • Shipping weight is 9 lbs.
View full details
Request a Demo
