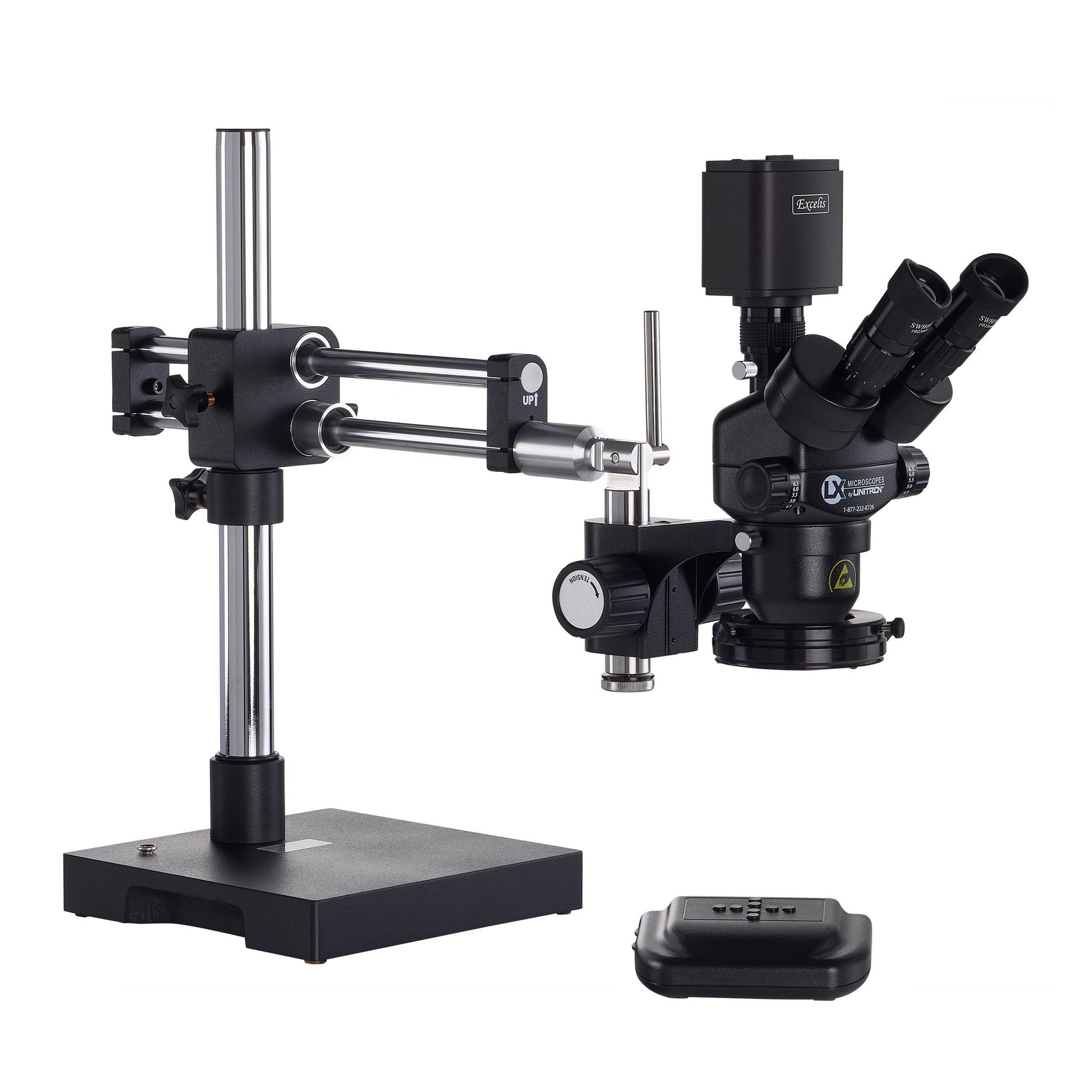

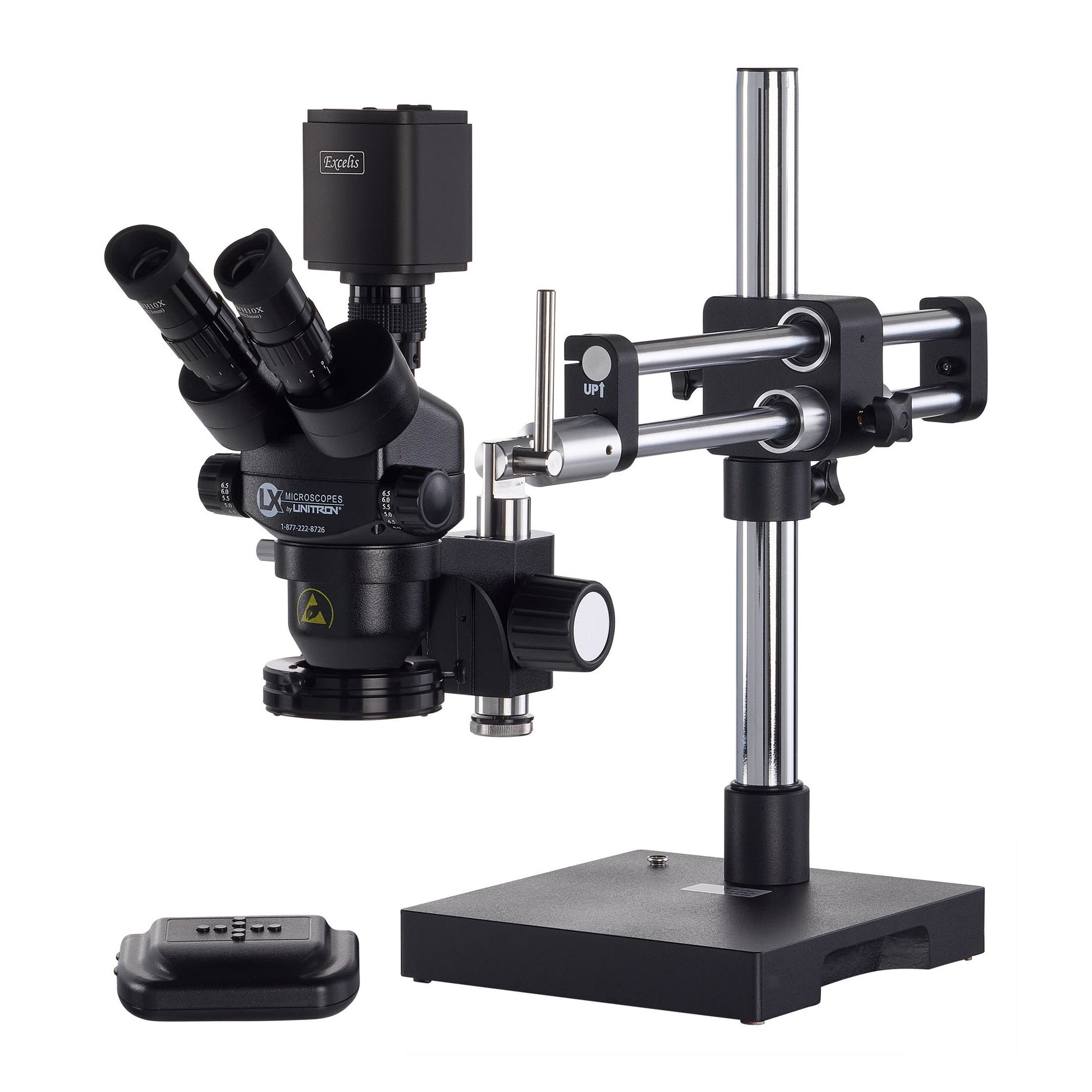

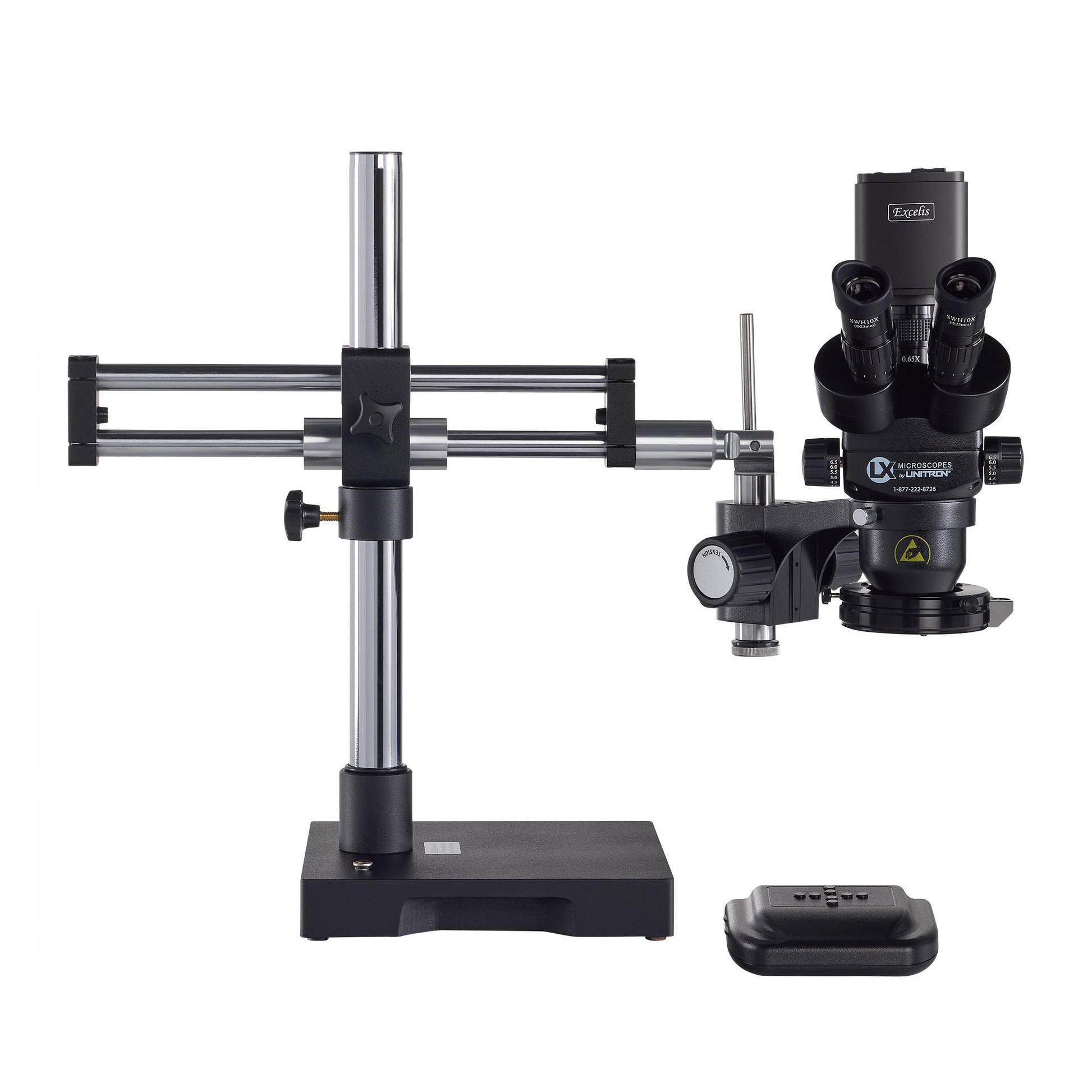

System 373RB-DMLED-HOHDTR-ESD, S-Z 23mm TRU Trinocular, 10X-65X, RB Stand, Dimmable LED-High Output Ring Light, Excelis HD Camera, Video Adapter, ESD-Safe

23625RB-HDTRT-ESD

System 373RB-DMLED-HOHDTR-ESD, S-Z 23mm TRU Trinocular, 10X-65X, RB Stand, Dimmable LED-High Output Ring Light, Excelis HD Camera, Video Adapter, ESD-Safe

Specifications

• ESD-safe. Body and stand feature baked-on powder-coat with a metal-laced paint that measures 10⁵ Ω/sq. (static dissipative).
• TRU Trinocular viewing head allows operator to use camera port and both eyepieces simultaneously. Features a click-stop detent at each marking on the zoom knobs to help hold and find a specific magnification.
• Super widefield 10x/23mm eyepieces with eyeshields
• High-quality achromat lenses with anti-reflective coatings
• 1.0x – 6.5x zoom magnification range controlled by graduated knobs on both sides of the viewing head
• Click-stops on the zoom knob at 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0 and 6.5 ensure repeatable magnification changes
• Magnification range 10x-65x (with 10x eyepieces)
• Working distance 110mm (WD 195mm if used with a 0.5x reducing lens)
• Heavy duty cast aluminum housing
• Dual boom roller-bearing stand with 17.5″ vertical and 22″ horizontal reach (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.
• Dimmable LED High Output Ring Light (CAT# 18743), 5600K color temperature, 50,000 hour rated lamp life and produces 5800 foot-candles at 4.5" working distance.
• Excelis HD 1080p color digital camera and camera adapter. The Excelis HD offers simultaneous live image output via HDMI to an HD monitor and to a computer via USB 2.0. Images can be saved directly to a PC or Mac or onto the included 8GB SD card. The Excelis HD camera can be fully controlled without a computer. The free software allows for measurements, annotations, extended depth of focus, image stitching, and fluorescence.
• Shipping weight 66lbs.

5 YEAR WARRANTY
