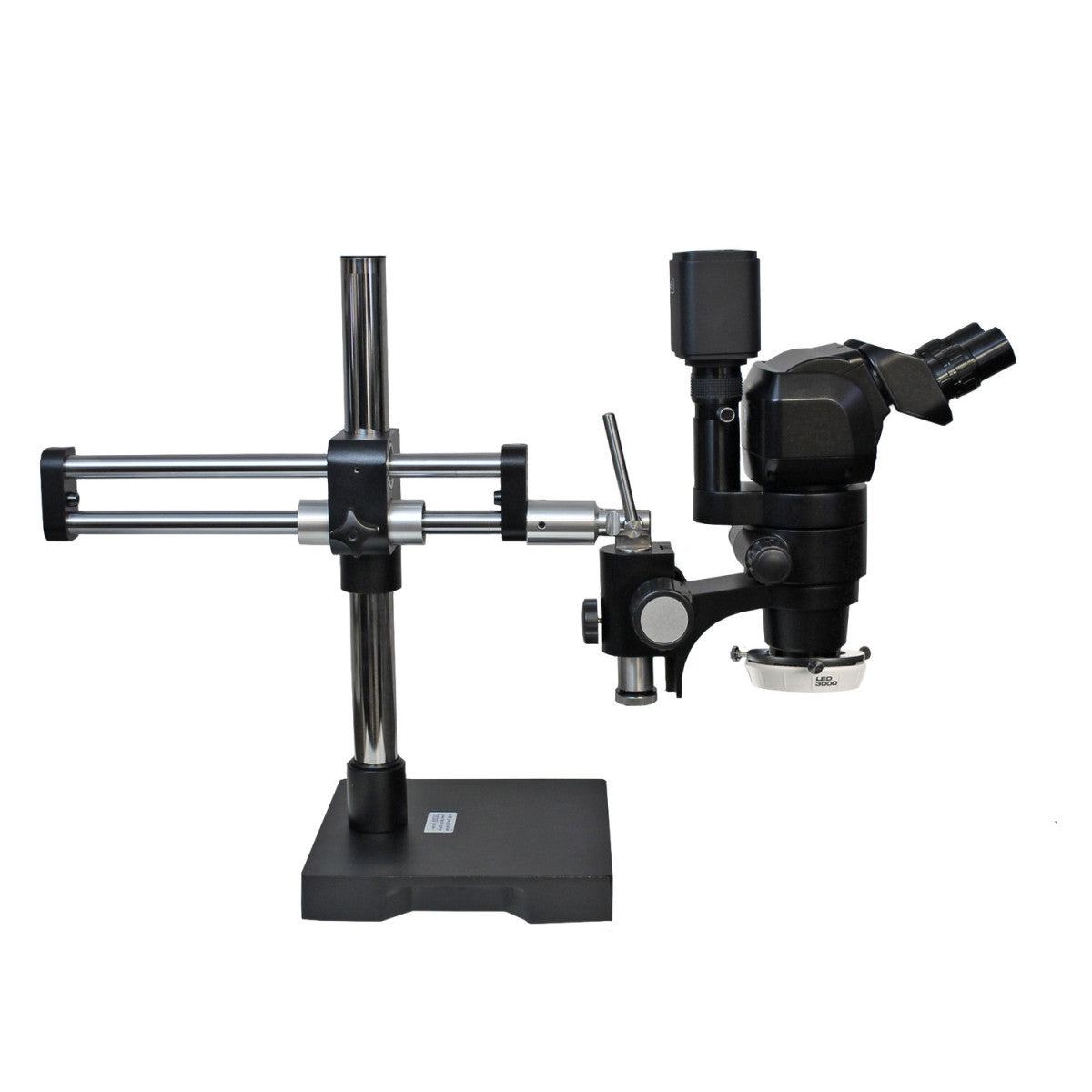

System 273RB w/0.5X Lens, HD Camera, Ring Light, VIP-HDTRT-ESD
Specifications
ESD-safe. Body and stand are powder-coated with a metal-laced paint that measures 105Ω/sq. (static dissipative)
TRU trinocular viewing head (ergonomic adjusting binocular eyetubes plus beam splitter camera port
Excelis HD camera with 0.5X camera adapter
LED-3000 ring light
Super widefield 10x/23mm eyepieces with eyeshields
High-quality achromat lenses with anti-reflective coatings
0.8X – 5.0X zoom magnification range controlled by graduated knobs on both sides of the viewing head
Magnification range 4X-25X (with included 0.5X reducing lens)
8″ working distance (when used with included 0.5x reducing lens)
Heavy duty cast aluminum housing
Dual boom roller-bearing stand with 17.5″ vertical and 22″ horizontal reach (10″ x 10″ base); Focus mount angles to 45° to permit additional viewing and inspection perspectives.
