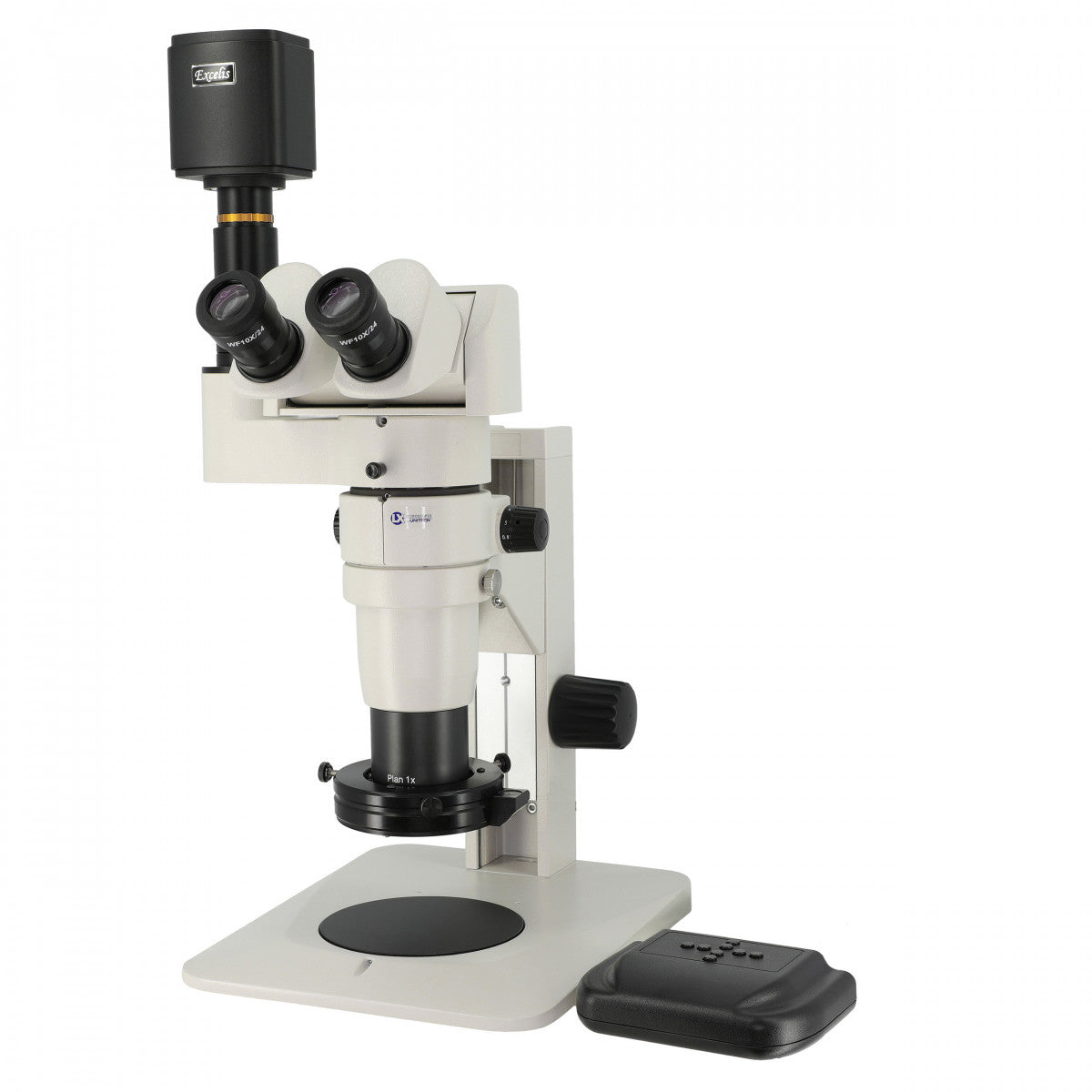

System 374PFSTRT-DMLED-HOHD-WITH 1.0X LENS, S-Z 24mm Ergo Trinocular, Plain stand, (1X lens included), Dimmable LED-High Output Ring Light, Excelis HD Camera, Video Adapter

24825-HDTRT

System 374PFSTRT-DMLED-HOHD-WITH 1.0X LENS, S-Z 24mm Ergo Trinocular, Plain stand, (1X lens included), Dimmable LED-High Output Ring Light, Excelis HD Camera, Video Adapter

Specifications

• Ergonomic trinocular viewing body with 0° to 30° adjustable inclination eyetubes
• Eyetubes rotate 180° increasing height by up to 3 inches
• WF10X/24mm field of view focusing eyepieces with roll down eyeguards
• Magnification range 8X to 50X (with 10X eyepieces)
• 78mm working distance
• 1.0X Objective lens included
• Plain Focusing Stand with 125mm of focusing travel, 175mm (L) x 225mm (D) x 219mm (H)
• Dimmable LED High Output Ring Light (part number 18743), 5600K color temperature, 50,000 hour rated lamp life and produces 5800 foot-candles at 4.5" working distance
• Excelis™ HD 6MP Camera, view and capture images with or without a PC. Perform measurements on live HD images. Simultaneously view live image through the eyepieces and output to an HD monitor directly or to a PC via USB2.0 using CaptaVision software (monitor and PC not included.)
• Video adapter, HDMI and USB 2.0 cables, 12V Power adapter, 8GB SD Card, USB Mouse and CaptaVision PC Imaging Software included
• Simultaneous view images on screen and through the eyepieces
• Shipping weight 21 lbs.

5 YEAR WARRANTY
